2013 New Products Led Tube With External Driver
US$ 1 - 2
MOQ: 100 Units
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2012
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Isolated Led Tube Driver 25w/external Driver Led Tube LightUS$ 1 - 2MOQ: 100 Units -
Led Tube Lights With Isolated DriverUS$ 1 - 2MOQ: 100 Units
-
Excellent Quality Led DriverNegotiableMOQ: 100 Pieces
-
Hot Selling !!!power Supply 6W/12W/24WUS$ 1 - 2MOQ: 100 Pieces
-
Professional Design T5 Isolate LED Tube Light Driver 25W Led DriverUS$ 1 - 2MOQ: 100 Units
Specifications
Isolated led tube driver 25W1. Size: L189xW17.6xH10mm
2. Power: 25W max
3. Input 85-265V AC, 50-60Hz
4. PF>0.96
2013 new products led tube with external driver
Isolated led tube driver 25W
Isolated constant current LED driver with primary side regulation design for T5/T8/T9/T10 LED tube lights.
It has the characteristics of high efficiency, high power factor and high precision output current.
Main features:
Input 85-265V AC, 50-60Hz
Output Voltage: DC 30-82V
Ouput Current: 230mA
Max Output Power: 25W
Conversion Efficiency ≥90%
Power Factor ≥0.96
Ripple and Noise: Max 2000MVp-p
Protection Function: Output open circuit/short circuit/overload/over voltage/over termperature
Ambient Temperature: -25~40°C
Relative Humidity: 20%~95%
Vibration: 1.0mm, 10-25Hz, 15 minutes per cycle for each axis (X, Y, Z)
Cooling: The power supply will operate with convection cooling
EMI Standards: this driver meets the radiated and conducted emission requirement for EN55013
MTBF: ≥50,000hours at 25°C
Weight: 34g/unit

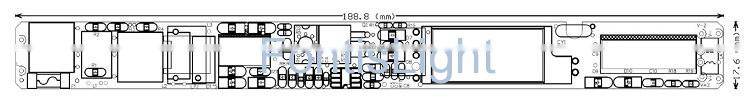

Dimension: L189xW17.6xH10mm
Advantage:
1) high efficiency
2) environmental protection
3) long lifetime
4) short circuit and open circuit protection
5) Universal AC input, meet all power demand in any area around the world
6) Attain high-efficiency,stable and low harmonic property by adopting the main scheme of IC controlled by high reliability PFC
led tube with external driver
led tube with external driver
