Using for Led Products,switch Power Supply

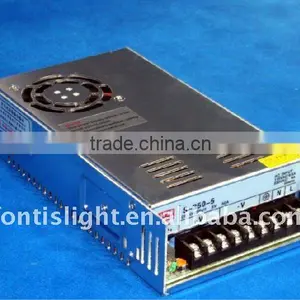

Using for Led Products,switch Power Supply thumbnail-1
Using for Led Products,switch Power Supply photo-1
US$ 1 - 2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Fontislight
Model Number:
S-350-12
Contact Supplier Request Quote Chat Now
Shenzhen Fontislight Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Fontislight
Model Number S-350-12
Output Power Other, 200-300W
Output Type Single
Input Voltage 220V
Output Voltage DC5V/12V/24V/48V, DC12V
Output Frequency 50-60
Output Current 7.3-50A, 29A

Specifications

12V 29A 350W Switching Power Supply:
1.CE ROHS approved
2.AC input and DC output
3.350W led power supply

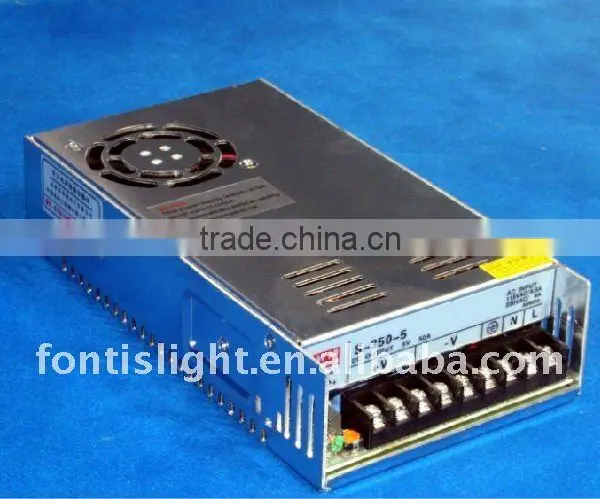

S-350 350W switching power supply



1. Features:

1)High efficiency, high reliability, low cost
2)Universal AC input / full range
3)100% full load burn-in test
4)Short circuit / overload / over-voltage protection
5)Cooling by free air convection
6)2 year warranty
7)Dimension: 230*115*50mm

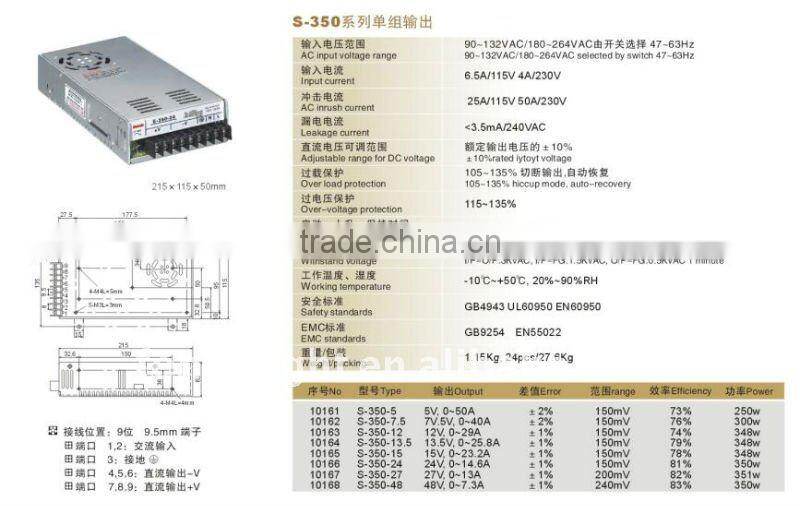

2.Specification:



MODEL S-350-5 S-350-7.5 S-350-12 S-350-13.5 S-350-15 S-350-24 S-350-27 S-350-48
OUTPUT DC VOLTAGE 5V 7.5V 12V 13.5V 15V 24V 27V 48V
VOLTAGE TOLERANCE ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1%
RATED CURRENT 50A 40A 29A 25.8A 23.3A 14.6A 13A 7.3A
CURRENTRANGE 0-50A 0-40A 0-29A 0-25.8A 0-23.2A 0-14.6A 0-13A 0-7.3A
RATED POWER 250W 300W 348W 348.5W 348W 350.4W 351W 350.4W
RIPPLE &NOISE(MAX) 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
DC VOLTAGEFRE QUENCY RANGE 0.05
SETUP,RISE,HOLD TIME 200ms,50ms,20ms
INPUT VOLTAGERANGE 90132 VAC/180264VACselected by switch 4763 Hz254370VDC
AC CURRENT Cold start 6.5A/115 V 4A/ 230 V
EFFICIENCY 74% 76% 76% 79% 78% 82% 82% 83%
INRUSH CURRENT 25A/115V50A/230V
LEAKAGE CURRENT 3.5 mA/240VAC
PROTECTION OVERLOAD PROTECTION 105%135% Shut down O/P voltage, re-power on to recover
OVER-VOLTAGE PROTECTION 5.75-6.7 9.4-10.9 13.8-16.2 15.5-18 18-21 27.6-32 33.7-39 56.7-67.2
HIGH TEMPERATURE PROTECTON ...
ENVIRONMENT WORKING TEMP.& HUMIDITY -10+5020%90 %RH
STORAGE TEMP.& HUMIDITY -20+8510%95 %RH
VIBRATION 10500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes
SAFETY WITHSTAND VOLTAGE I/P-O/P1.5KVACI/P-FG1.5KVACO/P-FG0.5KVAC
ISOLATION RESISTANGE I/P-O/P, I/P-FG, O/P-FG500VDC/100MΩ
STANDARDS SAFETY STANDARDS Design refer to UL1950
EMC STANDARDS Design refer to EN55022,EN55024,EN61000
OTHERS WEIGHT 1.15Kg
PACKING 12pcs/ 13.8Kg / 0.98CUFT
NOTE
1. Tolerance: Includes set up tolerance, line regulation and load regulation.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire teminated with a

0.1μf & 47μf parallel capacitor.
