Specifications
1.We are manufacturer2.12V 100Ah
3.Size:331*175*216mm
4.Weight:31kg
5.CE,ISO9001

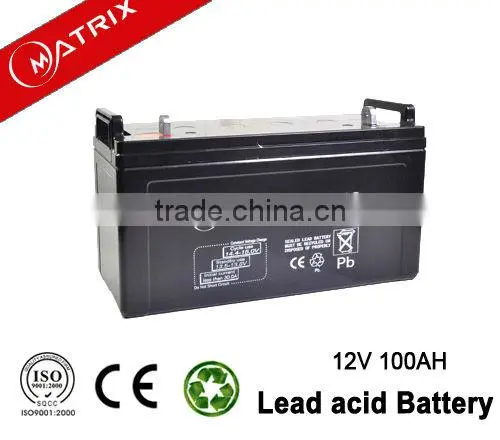

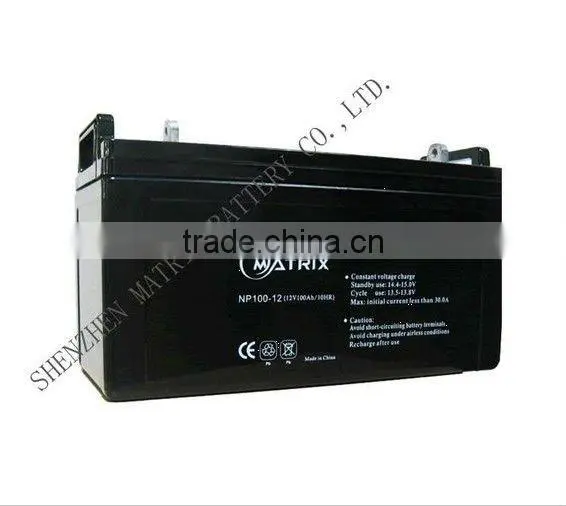

12V100Ah rechargeable storage battery
Details of the 12v 100ah storage battery
1: Norminal Voltage: 12v
2:Norminal Capacity:100ah
3:Size:331*175*216mm
4: Weight:31kg
5:Terminal:T10
6: Certificate:CE,ISO9001

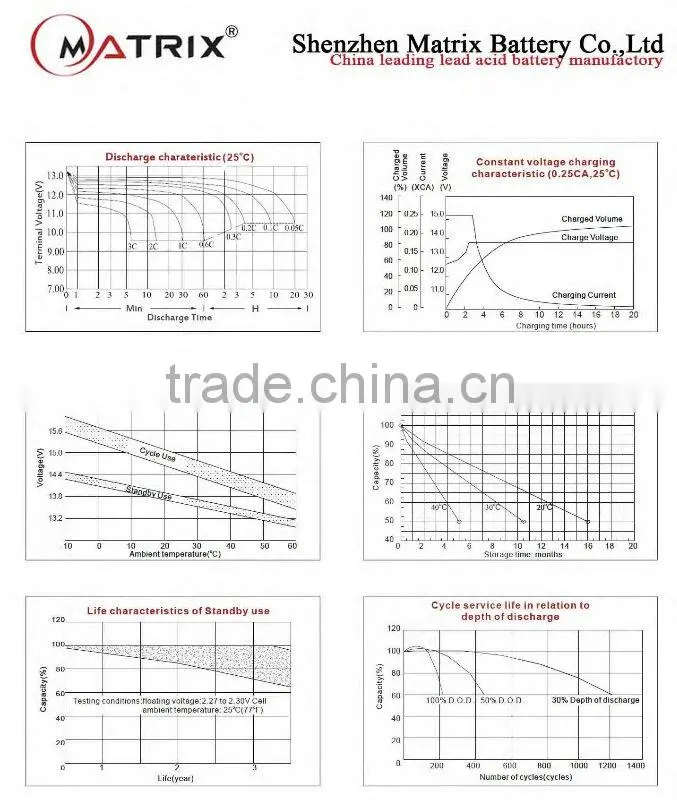

Capacity at 25°c of 12v 100ah storage battery
1.10 hour rate (10.00A,10.80v) 100AH
2.5 hour rate(16.00A,10.5v) 80AH
3.1 hour rate(60,00A,9.6v) 60AH
Self-discharge at 25°c
1.Capacity after 3 month storage 91%
2.Capacity after 6 month storage 82%
3.Capacity after 12 months 64%
Products festures of 12v 100ah storage battery
(1)plate Positive and negative plates consist of active mass and a lead-calcium alloy grid structure
(2)Safty valveThe safety valve opens when there is an abnormal increase in internal pressure
caused by overcharging or misusage. Gas is released from the battery to return the pressure back to normal.
(3)Container and covers Container and covers are made of ABS or PP resin, with superior strength
and acid resistance characteristics. The container and covers are sealed to prevent electrolyte and gas leakage.(4)Other partsSome other parts of this model,like terminal,case,terminal protector.electrolyte
.active materials are in good quality.You can check the quality by sample.
Advantage of 12v 100ah storage battery
1.The battery is full of power when it’s out of factory, no need to add liquid to charge;
2.No memory, no need to discharge battery to use, suitable for circuit design;
3.Use high class separator plate, adsorption function is very strong;
4.There is no flowing liquid (poor liquid), does not leak acid and free Upside down,
5.Comply with environmental requirements, ease of use,
6.The use of lead-calcium alloys, battery self-discharge is very low,
7.Easy storage, less maintenance;
8.Using ABS plastic shell and valve technology for safe use.
Specification of the 12v 100ah storage batery
| Capacity 25°C | 10 hour rate(10.00A, 10.80V) | 100.00AH | |
| 5 hour rate(16.00A, 10.50V) | 80.00AH | ||
| 1 hour rate(60.00A, 9.60V) | 60.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
4.5mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 30.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
