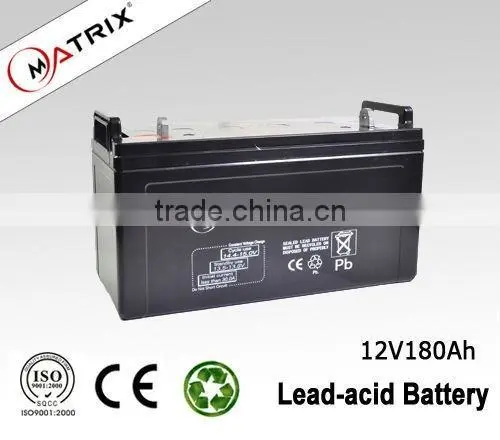

MATRIX Brand 12v 180ah Telecom Battery made in Shenzhen
we supply free maintance sealed lead acid battery with excellent quality and competitive price
Battery features:
vrla battery 12v 200ah
- Maintenance free
- High power to weight ratio
- No memory effect
- Low self discharge
- CE certificate
- Long service life
- High discharge rate
- Wide operating temperature range
Applications( vrla battery 12v 200ah ):
- Data Centre (High Rate UPS)
- Telecommunication
- Banks & Financial Centre
- Hospital& Testing Laboratories
- Power Generation Plants
- Emergency Lighting
- Emergency Power Supply
- High Power Backup Supply
- LED Light
- VAN
- Wheel chairs
- Security system"Alarm system" "CCTV"
- "Video" Camera""Loudspeaker"
- Marine
- Wheel Chair
Characteristic :
| Capacity 25°C | 10 hour rate(20.00A, 10.80V) | 200.00AH | |
| 5 hour rate(35.00A, 10.50V) | 175.00AH | ||
| 1 hour rate(124.00A, 9.60V) | 124.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
3mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 60.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | M8 | ||
Specification :
| Nominal Voltage | 12V | |
| Rated capacity(10 hour rate) | 200AH | |
| Dimensions | Length | 522±1mm(20.55 inches) |
| Width | 235±1mm(9.25inches) | |
| Height | 218±1mm(8.58inches) | |
| Total Height | 222±1mm(8.74 inches) | |
| Weight Approx | 58Kg | |
Warnings:
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
