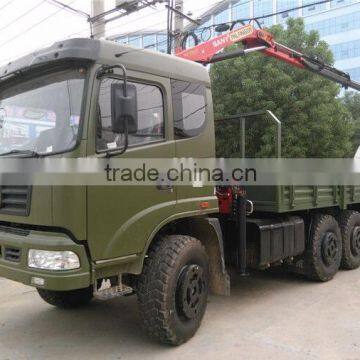

Dongfeng EQ5160G 6X6 off road truck mounted haib crane
- 200 Unit / Units per Month
- Shanghai Guangzhou Tianjin Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Construction | |
| Rated Loading Capacity | 15T | Rated Lifting Moment | 10.5TM | |
| Max. Lifting Load | 5T | Max. Lifting Height | 11m | |
| Span | 8m | Place of Origin | China | |
| Brand Name | Dongfeng | Model Number | EQ5160G | |
| Certification | ISO,CCC | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dongfeng EQ5161G 6X6 off road truck mounted crane
Dongfeng EQ5160G 6X6 off road truck with haib crane 5 tons specification | |||
brand | Dongfeng |
|
|
Name | EQ5160G 6x6 off road truck crane | model | DFD5160G |
G.V.W(Kg) | 16050 |
|
|
Load weight(Kg) | 7900 | Overall dimension(mm) | 7760,7825×2500×2845,2925 |
Curb weight(Kg) | 7955 | Cargo box size(mm) | 4850×2300×600,800 |
Cab passenger | 3 |
|
|
Approach/departure angle | 35/30, 38/30 | Suspension front/rear(mm) | 1385/1625,1450/1625 |
Axle number | 3 | wheelbase(mm) | 3500+1250 |
Axle load weight(Kg) | 4020/6015/6015 | Top speed(Km/h) | 95 |
The others | 1. Net engine power corresponding to: YC6J180-42 to 128kW, ISDe185 40 is 130.2kW; 2 side protection: Material Q235, connections after bolting under protection: Material Q235, bolted connection, section size 120 × 60mm,. ground clearance 450mm; 3 optional cab styling with form; 4 installation with a satellite positioning function of tachograph . 5.ABS models:.. 3631010-C2000, manufacturer: Dongfeng electronic Technology Co., Ltd. brake systems option
| ||
Chassis parampters | |||
chassis | EQ5160GLJ | Chassis | Special truck chassis |
Brand | Dongfeng | manufacturer | Dongfeng Motors |
Chassis overall dimension(mm) | 7500,7565×2470×2740,2850 | Tire number | 6 |
Approach/departure angle | 35/36,38/36 | Tire specification | 12.5R20 |
Leaf spring | 10/12 | Front wheel tread(mm) | 1916 |
Fuel fort | diesel | Rear wheel tread(mm) | 1876/1876 |
Emission standard | Euro III or IV | ||
Engine model | Engine manufacutrer | displace(ml) | power(Kw) |
YC6J180-42 ISDe185 40 | Yuchai diesel engine Dongfeng Cummins diesel | 6494 6700 | 132 136 |
Air conditioner | With A/C |
|
|
Vehicle colour | Can be chosen |
|
|
5T crane parameters: 3 haib boom
crane Model | SQ5ZK2Q |
| Unit |
Max Lifting Moment | 10.5 |
| t.m |
Max Lifting Capacity | 5000 |
| kg |
Recommend Power Needed At Recommend Oil Flow | 18 |
| kw |
Max Oil Flow of Hydraulic System | 25 |
| L/min |
Rated Pressure Of Hydraulic System | 28 |
| MPa |
Oil Tank Capacity | 90 |
| L |
Rotation Angle | (360°)All Rotation |
|
|
Crane Weight | 2011 |
| kg |
Installation Space | 1050 |
| mm |
SQ5ZK2Q Lifting capacity diagram | ||||
Working range(m) | 2.1 | 4.44 | 6.2 | 8.01 |
Lifting weight(kg) | 5000 | 2400 | 1600 | 1050 |
5 tons three folding arm lifting heavy capacity curve
Company products scope as following:
Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.
1. Factory Supply:
A). the biggest and famous vehicle manufacturer in china,
B). more than 300 kinds of special truck for your selecting.
2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.
3. Good Quality:
A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,
B). ISO9001-2008 standard and the 3C (China Compulsory Certification),
C). China top brand with good reputation at home and abroad.
4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.
5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.
1. Price term: FOB Shanghai in China.CIF for destination port.
2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.
3. Delivery time: 10-35 working days after payment is received.
4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
Once you have any inquiry about Dongfeng products in the following days,hope you could feel free to contact with us,wich is much appreciated.also welcome you and your team to China to our company for visiting,seeing is believing !
How to get to our city ? the flight line as following:
Flight line: you can fly from Shanghai/Beijing/Guangzhou or Shenzhen to Xiangyang airport of Hubei province,we can pick you up at the airport.
