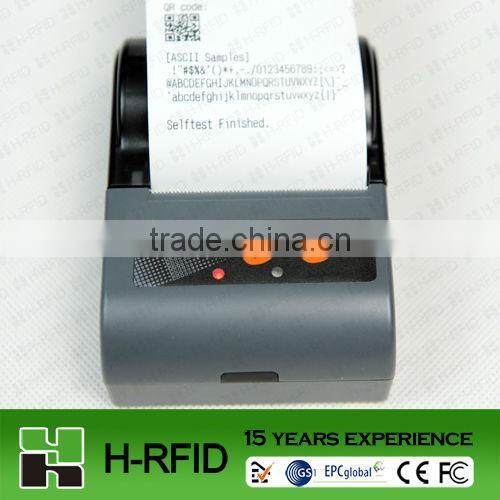

Newly Designed Small Thermal Printer With Timely Delivery From Original Manufacturer

Model

MPT-II/IR

MPT-II/BL

MPT-II/WIFI

Printing method

Direct thermo sensitive method

Paper width

57mm

Valid printing width

48mm

Weight ( g)

197g(excluding paper roll)

Diameter of paper roller

£40mm

Dot structure

384 dots/line

Input characters

ASCII CH(16* 8, 24*12),GBK ( 16*16, 24*24 )

Printing speed

50~80mm/s

Lifetime

50km(printing density under 12.5%)/100 million pulses

Printing content

English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode

(CODE39,EAN13,EAN8, CODABAR,CODE128,CODE93,ITF)

Dot pitch (resolution)

203DPI/8 dots/mm

Communication interface

IRDA/VIR/RS232

Bluetooth V1.1 CLASS /RS232

WIFI/RS232

Power

1500mAh 7.4V , rechargeable li-ion battery

Charging

Standby charging / AC adapter

Abnormal test

paper end/power capacity/ cover switch

Black mark test

Supported

Paper feeding

Easy paper loading

Command sets

Compatible with ESC/POS command sets

Paper cutter method

By hands

Operation environment

Temperature  -10°C~50°C ; Humidity 20%~85%

Charging environment

Temperature 5°C~40°C; Humidity 20%~85%

Storage environment

Temperature -20°C~70°C ; Humidity 5%~95%

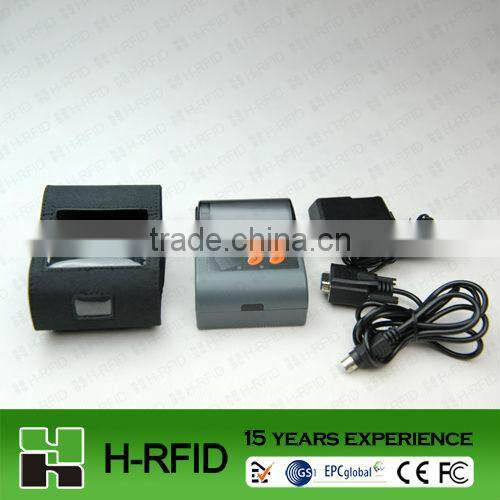

Standard accessories

Long-term preservable paper, AC adapter, li-ion battery

Optional accessories

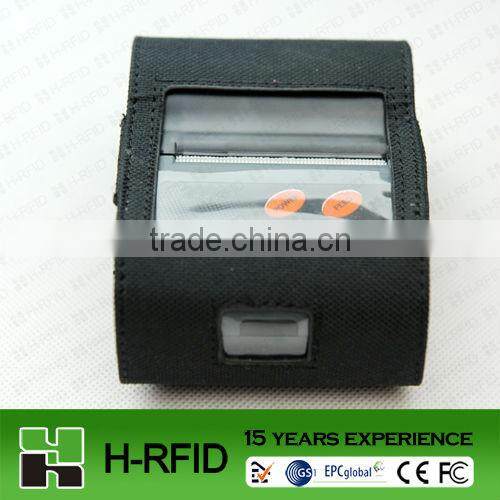

Serial interface cable / leather coat
