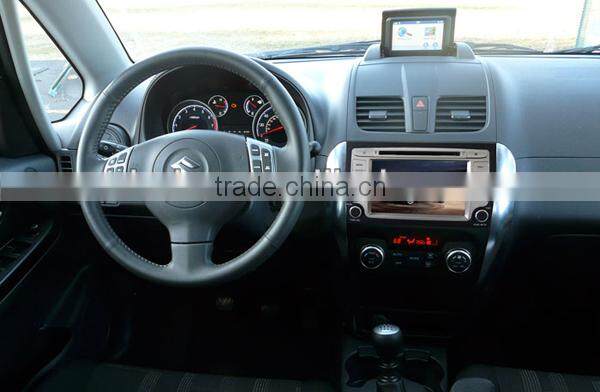

car RDS multimedia player for Suzuki SX4

Specifications

1.For Suzuki SX4
2.Dual Core topspeed processor
3.Good sound,Virtual 6CD copy
4.3G internet via adaptor
5.720P MP5

Car navigation and entertainment system for Suzuki SX4 with GPS/Bluetooth/Radio/SWC/Virtual 6CD/3G internet/ATV/iPod/720P RM/720P RMVB



Descriptions:



1. 7 inch Hannstar HD Original Digital touch screen, high temperature loader;

2. Sirf A4 + DSP Topspeed Dual Core processor;

3. Support MP4/MP5(720P RM/RMVB)/SVCD/DVD/AVI/JPEG/BMP/MP3/WMA, etc;

4. Built-in Bluetooth, Support BT phonebook with Name Se arching function;

5. Bulit-in AM/FM Radio, RDS for option;

6. iPod ready, support iPod List;

7. Support Analog TV, Digital TV(CMMB/ISDB-T/DVB-T/ATSC) for option;

8. Dual Zone;

9. Support 6 CDC;

10. 3G internet via 3G adaptor;

11. Reserve Rearview (Frontview for option)

12. Bulit 4*45W hi-fi amplifier;

13. Accurate navigation, support TOMTOM, IGO8, ROUTE66, NAVITEL etc;

14. Multilanguages: English, Russian, Portuguese, Spanish, Turkish, Hebrew, Arabic etc. More languages can be customized.





Parameters:



Disc support

SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX/MP4/MP5



General
Power voltage	DC 9V-16V
Overload	4Ω
Max power output	45W x 4
Tone control	7db
	Bass 20Hz
	Treble 20KHz
Output port	Audio: 4 independent output channels
	Video: 1 Composite video output  channels
Input port	Audio: 2 independent input channels
	Video: 3 composite video input channels
Video Features	Video output level: 1.0 VP-P(75Ω overload)
	Video features: 20Hz-20KHz(±1dB)
Temperature	-10°C+60°C
Humidity	15-75% (no water frozen)



DVD PART
Video system	Auto/NTSC/PAL
S/N(signal to noise ratio)	75dB( 1KHz 0dB)
Resolution	60dB
Frequency response	20Hz-20KHz
Dynamic range	80dB
Distortaion	0.4%



FM PART
Frequency range	87.5-108.0MHz
Practical sensitivity	22dB
Down sensitivity	9dB
S/N(signal to noise ratio)	60dB (1KHz 0dB)
Resolution	32dB
Frequency response	40Hz -13KHz
Medium frequency	10.7MHz



AM PART
Frequency range	522-1620KHz
Down sensitivity	35dB
Practical sensitivity	28dB
S/N(signal to noise ratio)	45dB (1KHz 0dB)
Medium frequency	450MHz
Frequency response	40Hz-2.3KHz



Main menu







High sensitivity Radio

Support Radio with FM and AM, RDS information display is available, support

U.S, Asia and Europe radio standard





Vehicle standard DVD loader

Digital original screen, 800x480 high definition display, full surround HIFI sound,

driving will be no longer boring





Bult-in Bluetooth

Handfree, support caller ID display, transfer phonebook, caller records, call history









Virtual CDC

Allows you to copy all the files from a CD (maximum 6 discs), you can play them

at any time without having the CD in the drive





Steering setting menu





Support IPOD menu

Support ipod, work with iphone, itouch and charge them





3G surfing the Internet

An amazing way to surf the Internet by 3G, extend entertainment further in your car





Accurate Navigation



Rear view camera

A rear view camera dramatically eliminates blind spots, making it safer and easier to

park and reverse your vehicle (optional)



Certificate
