Operating an excavator efficiently and precisely requires a thorough grasp of its controls, and the joystick serves as the primary means of maneuvering the machine. This guide aims to provide novice and experienced operators with the basic concepts of joystick control to allow smoother operations on various construction sites. Smoothing over the anatomy and functions of the joystick, basic and advanced movements of the machine, and skill-enhancing practice sessions will be covered. No matter your experience with an excavator, this blog post guarantees you the confidence to understand the ‘excavator joystick’s operation proficiently.

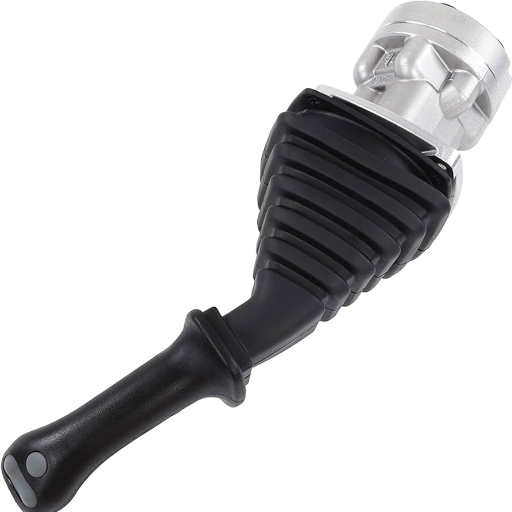

What is an Excavator Joystick, and How Does it Work?
An excavator joystick serves as a control device for various movements and functions of an excavator, such as digging, lifting, and rotation. An excavator is equipped with two joysticks, one for controlling the arm and boom and the second for the bucket and the machine’s rotation. The movement of the operator’s hand is mapped to hydraulic or electronic signals remotely controlling the machine’s actuators, which results in the movement of the excavator. Such configuration guarantees proper usability while maintaining the control necessary, establishing its necessity in modern excavators.
Understanding the Excavator Joystick Controller
Heavy machinery requires precision and the utmost control; an excavator joystick controller is tailored to that. Intuitive operation starts with the channeled hydraulic or electronic systems in the joysticks, which relay both of the operator’s hand movements into commands for the various machinery functions. By easing into the left or right joystick, the operator can control the left arm’s swing, arm movement, bucket movement, and boom adjustments. All of these enable the operator’s rotatory movements to be as complex as needed with minimal movement.
Modern ergonomic designs with programmable buttons customizable to specific requirements eliminate long-shift fatigue. Moreover, advanced systems offer differential controls, adjusting speed or power to precise movements. The combination of simple use, functionality, and flexibility on joystick controllers makes them indispensable during excavator operations.
Components of an Excavator Joystick Control System
In an advanced excavator joystick control system, several components work in unison to achieve optimal performance:
Exceeding industry standards, these joystick handles allow advanced control adjustments through integrated buttons and switches around the handle. Skilled operators endure long shifts in uncomfortable positions, contributing to order fatigue and reducing custom-crafted comfort.
Control valves execute elbow movement translation from the joystick to the machine. Control valves can be fully, partially, electronically hydraulic, or electronic to enhance precision.
The placement and accuracy of the electronic sensors guarantee precision in detection speeds, direction, and power. Advanced systems containing these features are deemed to be of high standard.
Seamless components power and transmission enhance the wiring harnesses, effectively connecting the joystick to the control unit.
Actionable inputs are executed through the CPU system’s central processing or control unit.
The combination of these allows for adept utilization of complex functionality. Complex tasks are no longer daunting in excavator operations. Integrative components elicit responsive precision, enhancing joystick systems.
The above statement shows the punctual control accuracy enabled through joystick control alongside ease in task handling.
How to Operate an Excavator with Joystick Control
Learn The Controls: Always remember the functions of each joystick that you will be using before operating an excavator. Usually, the left joystick moves the boom and swing, while the right joystick controls the stick and bucket. Look at the operator’s manual to understand your specific machine.
Complete An Inspection Before Operation: Check the excavator for mechanical problems, check all fluid levels, and clear the operational area. This enhances overall safety and optimizes performance during operation.
Position Yourself And Turn The Engine On: Ensure all the seat adjustments are aligned with your comfort and visibility, then get into the cab. Turn the engine on and check that all safety features, such as seat belts, are in position.
Perform Basic Movements Using Joysticks: Now, test movements by controlling the basic tasks with the joysticks. Operate the left joystick up and down to move the boom and to the side to swing the cab. Use the right joystick to extend or retract the stick and curl or straighten the bucket.
Manage Precision and Speed: Always remember to start with slow and gentle movements. Once you gain confidence in handling the machine’s operations, gradually increase speed and control.
Observe Safety Policies: Always be careful when using an excavator and ensure no people or objects are in the way. Keep the machine balanced over rough ground and follow organizational health and safety policies.
Excavator operators equipped with joystick controls can be skilled at maneuvering the vehicle through multiple tasks by following these steps and practicing consistently.
How to Choose the Right Excavator Joystick Handle?
There are many factors to consider when selecting an excavator joystick handle. First, check if the joystick handle is compatible with your excavator model. Then, look at the ergonomic design of the joystick handle. It should reduce operator strain and offer comfort during prolonged usage. Durability is also paramount. Ensure that the joystick handles are made out of materials of the highest quality that will last in harsh working conditions. Lastly, other programmed controls should be considered based on the tasks performed most often.
Factors to Consider: Durability and Ergonomics
When selecting a joystick handle, ergonomics and durability should be priorities for long-term comfort for the user. For durability, ensure the handles are made of reinforced plastic or metal. Devices exposed to extreme temperatures, harsh environments, and wear and tear require robust materials. Ergonomics should also be considered. Handles that are contoured or have textured grips reduce fatigue and strain when operating. Lastly, low-maintenance surfaces and shock-absorbing materials provide enhanced usability and robustness.
Comparing Different Joystick Controllers
When selecting joystick controllers, it is essential to carefully check all details that might affect performance and specific application use. Start by looking at the construction and material used. For instance, industrial or professional-grade joysticks use high-end reinforced plastic or metal, which is more durable. The ergonomic design is also essential. Pro controllers with texture, adjustable specs, or contoured grips can prevent fatigue for the user over long durations of use.
Now, it focuses on the speed and accuracy of the joystick’s movement. Precision and responsiveness with no delay guarantee input accuracy for gaming, robotics, or machine operation. Using force feedback and Hall effect sensors helps improve precision, providing a more efficient experience.
Lastly, check for customization and compatibility options. Controllers with wide adjustable buttons and profiles and support for numerous devices give the user much flexibility. Knowing what the client needs is essential in determining important factors that will guarantee his demand; henceforth, understanding the selection of the right joystick controller is necessary.
Top Brands and Caterpillar Options
Looking at the leading joystick controller brands, Logitech, Thrustmaster, and CH Products are best known for their quality and performance. These companies are some of the most trusted due to their robust designs and advanced features. Logitech has a selection of low-cost to costly controllers, making them great for casual and professional users. Thrustmaster sets itself apart with specialized flight and race simulator controllers that have precise inputs and are very durable. CH Products specializes in industrial and professional applications where controllers must be reliable and highly programmable.
Caterpillar joystick controllers have joystick controllers that are known for their use in heavy-duty machinery. Their rugged and adaptable design makes them ideal for rough conditions while maintaining easy operation. Often, they are equipped with advanced sensors for precision and can be tailored to fit various pieces of machinery. Whether, it is for gaming, simulation, or industrial use, the correct brand and controller selection relies on what meets your specific needs, having defined goals beforehand ensures you achieve your objectives.

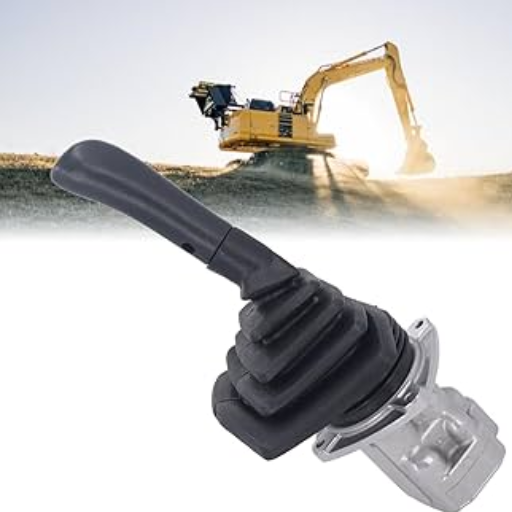

How Does Joystick Control Enhance Excavator’s Performance?
Joysticks make operating an excavator easier by ensuring precise and effective performance of its functions. An operator will experience significantly lower fatigue during fatigue during long hours ot work because of the robot’s ergonomic design, which allows for easy maneuvering. The advanced systems also come with proportional control, better known as smooth and accurate boom, arm, and bucket adjustments. This unmatched level of precision enhances productivity and task accuracy while improving handling complex operations.
The Role of Precision in Excavator Operation
For safety and other project objectives, productivity requires enhanced precision in the operation of an excavator. Accuracy ensures a reduction in material waste and the potentially costly errors that can occur while performing tasks such as grading, lifting, trenching, etc. With the help of modern technologies like GPS and machine control software, operators can now perform with adjusted unmatched value accuracy, thereby reducing the need for any rework. In addition, the latest hydraulic systems have been brought together to improve the robots’ responsiveness and enable seamless transitions between different functions. When enhanced with the operators through their expertise, the systems allow tremendous performance to reduce downtime, use resources best, and navigate challenging jobsite conditions.
Benefits of Hydraulic Joystick Systems
The benefits of hydraulic joystick systems include precision control and operation ease. These factors make them ideal for heavy equipment and machinery. These systems also alleviate operator fatigue, as simplified movements can be performed with minimal stress. Moreover, advanced systems are designed for smoother handling, increasing productivity while minimizing the chances of error. Customization is a common feature modern hydraulic joysticks have, allowing operators to tailor solutions for specific jobsite needs. Moreover, harsh working environments do not affect the hydraulic joysticks’ durability, reliability, and performance, increasing their long-term operational efficiency, reducing downtime, and improving overall efficiency.
Improving Operator Control and Efficiency
Advanced, intuitive technologies and ergonomic designs must be integrated into equipment to enhance operator control and efficiency. An example of such equipment is hydraulic joysticks, which allow operators to control tasks precisely, enabling them to carry out activities without feeling fatigued. Customizable feedback controls, automation technology integration, smart sensors, and real-time monitoring create further usability. With such features, operators are aided in making informed decisions that eliminate errors and increase productivity. All these features, while withstanding rough designs and technological innovation, result in machines that ensure maximum performance, stability, and security for the operator. These advancements enhance job results and improve workflow efficiency on the jobsite.

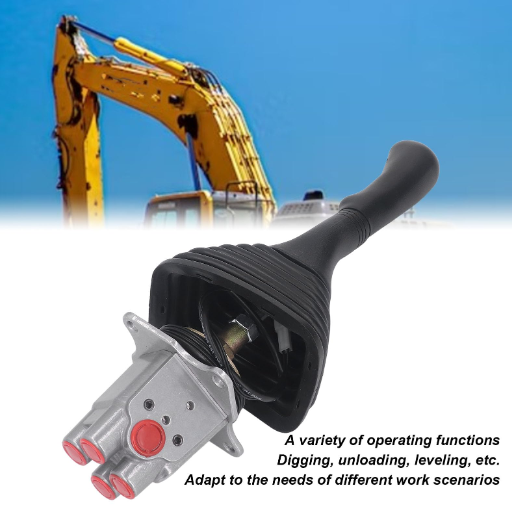

What are the Innovations in Excavator Joystick Technology?
Developments in modern joystick technology for excavators focus on improving the efficiency and comfort of operators. One of the most significant improvements is the addition of customizable controls. Operators can set joystick controls according to their preferences and specific tasks with customizable controls. Furthermore, advanced systems that provide haptic feedback also enhance precision through the sense of touch and lower the chances of making operational errors. Joysticks that are not connected by wires or Wireless joysticks are also becoming popular because they allow greater freedom. Also, new designs have better grips and less vibration, which reduces operator fatigue during long work periods. These changes improve the operator’s productivity by making the joystick easier to use. This ensures better functionality.
Exploring Multi-Axis Joystick Controls
Modern equipment and machinery require versatile and multidirectional precision joysticks. These joysticks can be further manipulated through the direction of movement and turns, allowing multiple functions to be used simultaneously. These joysticks are popularly used in many industries, including construction, robotics, aviation, and manufacturing, providing effortless and natural movement.
Multi-axis joysticks enable both X-axis and Y-axis movements or even add a Z-axis for rotational controls, drastically reducing the cognitive load on operators. Their increasing sophistication often includes proportional controls that vary the level of control, achieving differing speed and functionality depending on how far the joystick is pushed. This improves overall performing intricate tasks and overall efficiency.
Due to the increased demand for functionality, modern multi-axis joysticks are commonly outfitted with integrated sensors or programmable buttons that give operators quick access to customizable commands, streamlining operations. They are constructed of strong materials to withstand harsh environments and ergonomic to relieve strain during prolonged use. Multi-axis joystick controls advance operational accuracy and productivity and further enhance it by bringing practical innovations.
Advancements in Joystick Remote Control
The precision, usability, and connectivity innovations have advanced joystick remote control technology over the years. With modern joysticks, operators can be more aware during operations as the equipment provides haptic feedback. The addition of wireless technology has freed many applications from the limits of cables, enabling better flexibility as wireless communication with equipment can now be established. In addition, programmable settings improvements allow users to tailor controls to particular tasks better, improving efficiency and adaptability across many industries. With the addition of AI, these controllers can now predict the operators’ intentions, which decreases strain and improves workflow, along with the automation of repetitive tasks. These devices, which are designed to withstand the harsh conditions of construction, robotics, and other emerging industries, still focus on durability and ergonomic design.
The Future of Industrial Joystick Design
The design of industrial joysticks is moving toward more brilliant technology integrated within the system due to technological advancements alongside user demands. New trends include haptic feedback, which provides tactile responses to user actions that enhance precision. Furthermore, wireless connectivity alongside IoT integration is reshaping joysticks at the receiving end, which allows for remote operation, real-time data monitoring, or efficiency monitoring data to be recorded, allowing for reduced downtime. In addition, sustainability is now a focus as manufacturers utilize environmentally friendly materials alongside energy-efficient designs. AI and machine learning will assist in personalizing operation modes to improve adjustable adaption to user patterns while anticipating required maintenance. Deteriorating device lifespans will be avoided. These variations encourage a future where industrial joysticks will provide unmatched functionalities and utilization in various sectors.

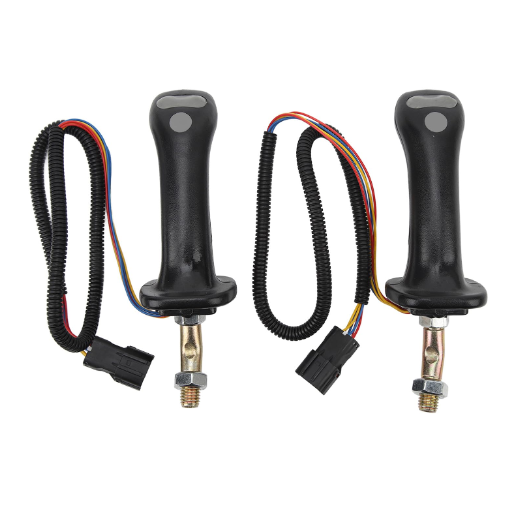

How do you maintain and troubleshoot an Excavator Joystick?
Regular exterior cleaning is essential to eradicate dirt and debris build-up and maintain the functionality of an excavator joystick. Additionally, check the cables and connectors for any loose or damaged parts. If any are found, they should be securely attached. If the manufacturer’s guidelines recommend lubricating moving parts, smooth operation is ensured. Regular accuracy checks should also meet the standards of functional calibrating preventive maintenance checks of the joystick.
While performing a function test, ensure that wiring connections are not loose or frayed, as these are possible frequent faults. Should the joystick not respond to movements, check the control interface for error messages and consider performing a soft reset if one is available. Also, try using the joystick on some other compatible equipment to establish whether the joystick itself or the equipment is defective. If the difficulties continue, refer to the manufacturer’s manual guide or consult an expert technician for detailed assessment and repairs.
Routine Maintenance Tips for Joystick Handles
Improper maintenance of joystick handles may result in sticky movements, affecting operational efficiency and durability. Routine precautions should be implemented by systematically cleaning the joystick with a soft, lint-free cloth or microfiber cloth designed to capture particles. Cleansing necrotic tissue grime requires isopropyl alcohol for removal, so remember to turn off the joystick to avoid potential damage during the cleaning process. Checking the handle periodically is beneficial; it should be inspected for cracks, deformation, and looseness, and the checking should include screws that require fastening or components that need replacement. Using an approved lubricant makes turning parts easy; however, over-application should be avoided as it may make the part prone to dirt contamination. It is essential to routinely inspect wires and connectors for signs of damage, fraying, or corrosion. Damaged cables should be replaced promptly to reduce the risks of faults. Implementing these maintenance practices will reduce the chances of extended downtimes with malfunctions and improve the part’s usage lifespan.
Common Issues and How to Fix Them
Joystick Drift
Cause: Dirt, dust, or analog stick wear can accumulate and create joystick drift.
Solution: Loosely clean the joystick with compressed air or a soft cloth. If the drift continues after washing, the joystick or the analog stick must be recalibrated through device settings.
Unresponsive Buttons
Cause: Components that are likely faulty, debris under the buttons, or worn-out switches.
Solution: With clean hands, pick out the junk using a soft-bristle brush. After clearing any debris, take apart the joystick’s handle for glimpses and cleaning of internal parts. Determine broken buttons and or switches and replace them if applicable. Confirm that the connections are still mounted.
Connection Issues (Bluetooth or Wired)
Cause: Firmware that is outdated, weakened signals, or damaged cables.
Solution: Ensure that the joystick is within range and not obstructed from the signal for wireless devices. Ensure the firmware is up to date. Look at the cables of wired devices, checking for damage. If wires are frayed, ensure the releasable connector ports are checked for dirt and other residue marks.
Calibration Problems
Cause: Software hiccups are most likely the cause of the problem, which could cause the set prompt to be misconfigured.
Solution: You should reset the joystick to its default settings and follow the manufacturer’s guidelines. If issues persist, ensure the software and device’s drivers are fully updated. By promptly addressing these common problems, you can ensure your joystick operates at peak efficiency and remains reliable.
When to Seek Professional Help
Powering through the standard troubleshooting steps is ineffective in solving the issue. In such a case, it’s best to consult a professional. A specialist should care for a damaged joystick with irreparable hardware malfunctioning components that do not respond. Also, a specialist is needed if the issue requires some internal repair, whether wiring, a circuit board, or some sophisticated software problem that cannot be undone with simple updates, solutions, or recalibration. If the joystick is still under warranty, contacting the manufacturer’s support staff is best to avoid breaching the warranty. For sophisticated advanced repairs, turn to authorized services that apply proper diagnostics and likely remove all problem sources without damaging the system.
References
Frequently Asked Questions (FAQ)
Q: What is the purpose of an excavator control lever?
A: An excavator control lever manages the movement and functions of the excavator’s arm and bucket, allowing for precise excavation and material handling. It plays a critical role in the excavator’s operation, ensuring tasks are completed efficiently.
Q: How does a hydraulic remote control valve joystick work in an excavator?
A: A hydraulic remote control valve joystick controls the excavator’s hydraulic system. The joystick translates the operator’s manual movements into hydraulic actions, precisely controlling the machine’s arm and bucket.
Q: What is the difference between a joystick industrial control and a traditional lever system?
A: A joystick industrial control offers more intuitive and ergonomic management of the excavator’s movements than traditional levers. Joysticks allow for multi-directional input and can be easier on the operator’s hand grip during extended use.
Q: How do I connect with Cat when choosing an excavator joystick?
A: When choosing an excavator joystick, connecting with Cat, a renowned caterpillar brand, can provide industry solutions and access to high-quality control handles and joystick assy options.
Q: What should I consider when selecting a joystick excavator controller for 2024 models?
A: For 2024 models, consider a joystick excavator controller designed to fit your machine’s specific model. Check compatibility, ease of use, and the availability of features that enhance your construction project efficiency.
Q: How do I ensure I get the best price on a joystick assy for my excavator?
A: To get the best price on a joystick assy, compare prices from multiple suppliers, look for discounts or bulk purchase options, and always refer to your operation and maintenance manual to ensure you’re purchasing the correct part.
Q: What role does the joystick play in operating a loader or wheel-based machinery?
A: In loaders or wheel-based machinery, the joystick is crucial for maneuvering and controlling the machine’s movements. It helps steer the machine and manage the loader’s operational functions effectively.
Q: Can the same joystick be used for excavators and cranes?
A: While some excavators may use similar joysticks to cranes, verifying compatibility with your specific machinery is essential. Joystick industrial control systems are typically designed for particular machines, so consult your operation and maintenance manual.
Q: What features should I look for in a control handle for heavy-duty machinery?
A: Look for a control handle with durability, ergonomic design, and multi-functionality. It should be easy to grip and operate under various conditions, ensuring precise control over the excavator’s operation.
Q: Why must you refer to your operation and maintenance manual before using a new joystick?
A: Always refer to your operation and maintenance manual to ensure proper installation and use of the new joystick. This helps avoid potential damage to the machine and ensures that the joystick is put to work correctly, allowing you to do the job immediately.
