LCD Display Guide: Liquid Crystal Display Basics and LCDs

What is an LCD Display and How Does it Work?

Liquid Crystal Display, commonly known as LCD, is a display technology used in TVs, computer screens, tablets, and mobile devices. It employs liquid crystals that bend and modify light when electricity is applied to them. The liquid crystals are situated between layers of panes of glass or some other explicit material, where a backlight provides the light. Furthermore, the crystals control the passage of light used to form images and colors. LCD technology is reputed for its efficiency in the use of power, its thin profile, and its sharp and vivid image reproduction.

Understanding Liquid Crystal Display Technology

Over the years, advancements in LCD technology have made it a preferred option for various applications such as smartphones and televisions. Manufacturers have updated the materials and processes for constructing modern LCDs, resulting in higher resolution, improved color accuracy, and faster response times. For example, OLED-assisted LCDs use organic compounds, improving contrast ratios while maintaining energy-saving features.

Another innovation includes LED-backlit LCDs, which substitute fluorescent backlighting with light-emitting diodes. This advancement allows for lower power usage and ultra-thin displays, which is a bonus for portability. In addition, the refresh rates for LCD screens have also greatly improved, with most displays now providing refresh rates of 120Hz to 360Hz or even higher, enabling smooth rendering of fast-moving images.

Market analysis states that LCDs remain one of the most affordable options for emerging display technologies, as the production rate is still high. Their lifespan and resistance to wear and tear make them widely adopted, while improvements in adaptive brightness and anti-reflective coatings amplify user experience across many sectors. These factors showcase the versatility and potential of LCD technology in the ever-changing consumer electronics landscape.

How Liquid Crystals and Backlights Create Images

The seamless functioning of liquid crystals and backlights produces stunning images displayed on LCD screens. The process begins with the uniform illumination at the back of the screen provided by the backlight, which is usually made up of LED lights. Subsequently, the light is prepped to undergo two polarizing filters alongside a liquid crystal filter. Liquid crystals are special because they can change their orientation based on electrical current. The precise control of the crystals defines how much light can flow through each pixel.

In each sub-section (subpixel) of an LCD, there are half segments arranged in red, green, and blue, which, while combined, give all the possible colors. Advanced modern LCD technologies outperform their predecessors by modifying color accuracy and contrast ratios with advanced voltage regulation. Take, for example, the 90% of DCI-P3 standard reproducing color gamut most modern displays mentioned; now that is depth and vibrancy of images taken to the next level.

Moreover, the development of backlighting technologies with mini-LEDs offers backlight local dimming, enhancing contrast while deepening black levels. Certain top-tier LCD panels can now reach a peak brightness of 1,000 nits or greater, making them adept at displaying HDR content. The synergy between the liquid crystals and the advanced backlighting ensures LCD technology maintains its ability to provide sharp, dynamic images in devices like smartphones and giant television screens.

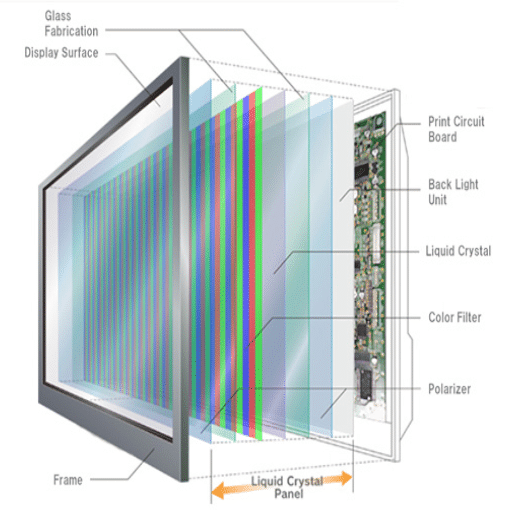

The Basic Structure of an LCD Screen

Liquid Crystal Displays (LCD) comprise many individual layers working together to produce vivid images. A liquid crystal layer manipulates light at the inner end to create the desired visuals. These liquid crystals are placed between two layers of polarized glass that can control the light’s flow through alignment or misalignment of their structure in response to electric current.

The backlighting system, which lies directly behind the layer of liquid crystals, provides the necessary illumination. Nowadays, LED and mini-LEDs backlight most modern LCDs since they have higher brightness up to 1,000 nits or more and significantly increase energy efficiency within the range of a wide color gamut. A color filter layer follows it, transforming the LED light to red, green, and blue, the primary colors that form all colors on the screen.

To improve these features even further, other technologies are integrated into advanced LCDs, such as in-plane switching (IPS) for enhanced viewing angles or vertical alignment (VA) for improved contrast ratios, which in some cases go as high as 6000:1. These improvements have made it possible for LCDs to be used in numerous applications from sharp, high-resolution smartphone displays to ultra-large 8K televisions, retaining sharpness and vibrance on all devices.

What’s the Difference Between LCD and Other Display Technologies?

In contrast to other display technologies, the most distinguishing characteristic of LCD (Liquid Crystal Display) technology is image creation. While OLED (Organic Light-Emitting Diode) displays produce light at individual pixels, LCDs utilize a backlight that shines behind the liquid crystals that dictate which light to allow through. This implies that contrast ratios and the depth of blacks are usually lower on LCDs because OLED displays can turn pixels off completely in dark regions. LCDs struggle to achieve true black and have muted tones due to the perpetual backlight. Unlike LED (Light Emitting Diode) displays, LCDs do not contain individual diodes for forming an image but relatively liquid crystals, which makes LCDs cheaper in large sizes but potentially less saturated in color. Furthermore, technologies such as QLED (Quantum Dot LED) use LEDs to formulate standard features, offering better brightness and color fidelity than LCD. There are multiple technologies with strengths and ideal applications; LCD remains the most versatile and commonly used.

LCD vs OLED: Comparing Display Technologies

There are a few distinguishing LCD features between OLED (Organic Light Emitting Diode) and LCD (Liquid Crystal Display): brightness, contrast, response time, technical power consumption, and consumption angles.

Brightness: LCDs excel in brightness due to the application of backlights. This property makes them ideal for light-rich settings like offices or outdoor use. On the contrary, OLED displays may sometimes struggle in bright light settings because every pixel radiates light individually, which cannot reach the same peak glow as LCD backlights.

Contrast and Blacks: In the pursuit of true blacks as well as high contrast ratios, OLEDs outperform LCDs. Since the OLED pixels glow individually, they can turn off entirely and rich blacks, which means a limitless contrast ratio. LCDs still depend on backlighting, which contains some degree of light leakage, dimmed grayer blacks, and even shutter windows light masks; more modern versions offer some local blackout dimming.

Response time: Action-packed gaming and speed-driven media are characteristic of OLED screens, which always have much faster response time and outperform LCDs. The refresh rate of pixels is more rapid in OLED technology, making motion smoother and reducing blur. LCDs have recently improved but tend not to remain behind in the motion blur category.

Power use differs between these methods depending on use, but overall menos consumption can be said to be achieved. OLED displays are more energy efficient than back-lit LCDs when depicting darker images since one of the pixels can be turned off completely. However, OLED consumes more energy during dark image display than energy-efficient back-lit LCDs. This is due to how OLED pixels utilize energy by emitting light at maximum brightness, causing disproportionate energy consumption.

Efficiency of viewing angles, OLED displays have superior straps, colors, and brightness retention on the side. IPS (In-Plane Switching) panels improve this significantly, retaining ratio color without deterioration. Still, non-IPS LCDs suffer from poor view color and luminance loss at oblique angles. Durability-wise, OLED displays are weak to “burn-in”, a mark left on a display by a static picture shown for an excessive period. LCDs do age gracefully without losing longevity when displaying fixed content.

Smartphones and tablets are prime examples of OLED technology being most known and used for flagship smartphones and high-end televisions. In addition, the slim design, with effortless ease of hold while maintaining image quality, makes handheld devices premium-grade fuel. From this, it is evident that the use and demand for cheaper products are on the rise. The price drop trend is, however, significantly noticeable. Despite exceeding price limits, OLEDs remain costlier to manufacture than LCDs. Due to their price and adaptability, liquid crystal displays form the backbone of low-end television and monitor markets and other sectors that require cost efficiency and low maintenance. Ultimately, selecting an LCD or OLED display relies on the specific application one intends to use. OLED reigns supreme for those seeking the highest possible image quality, absolute black levels, and captivating viewing experiences. In the interim, LCDs remain relevant in applications where cost, brightness, and resistance to damage are priorities.

LCD vs CRT: How Older Display Technologies Compare

The change from CRT (Cathode Ray Tube) screens to LCD (Liquid Crystal Display) systems represented a technological change. Manufacturers used to create chromatographic screens (CRTs), where they painted the phosphors on the screen using electron beams; this practice was very popular. CRTs had vivid colors and wonderful response times but posed several issues, including screen flicker, high energy use, and bulky size.

The introduction of LCDs overshadowed CRT technology. LCD screens are slim and lightweight, posing several consumer electronics benefits, including professional settings like offices. While CRTs excelled in color reproduction and contrast ratios, LCDs significantly improved. With the introduction of LED backlighting and higher refresh rates, CRTs’ dominant position in the market has dramatically declined.

Modern-day LCDs surpass CRTs in numerous aspects. The average CRT could only go as far as 1600×1200. LCDs outperform that and regularly provide Full HD (1920×1080) and even 4K (3840×2160) resolutions. Additionally, LCD panels pose lesser risks for screen burn-in, while AD CRTs constantly emit radiation, which is unsafe for users, deeming LCDs a superior option for long-term comfort.

Even though CRTs provide deeper blacks and smoother motion without a fixed pixel grid, their enormous size and weight limited their practical use as technology advanced. LCDs have supplanted CRTs due to their lightweight, thin profile, flexibility, and potential for further development to meet consumer needs.

Understanding LED Backlight vs. Traditional LCD Backlighting

The advancement in techniques of display backlighting has changed for the better the imaging quality, energy consumption, and the user interaction of devices. Conventional LCD backlighting uses cold cathode fluorescent lamps (CCFLs) for illumination. Initially, CCFLs were widely used because of their affordability and uniform brightness. But these also had certain drawbacks, such as reduced energy efficiency, excessive heat output, and poor light intensity control, resulting in lowered contrast.

Backlighting with light-emitting diodes (LEDs) has proven more flexible and efficient. The energy-saving precision of LEDs is unmatched because they use 30-40% less power than CCFL backlights. This helps portable devices extend battery life and decreases the cost of electricity for consumers. In addition, less Microsoft PowerPoint-led backlighting improves the global dimming capability of brightness and dimming in certain areas, which increases the overall calm contrast ratio of the display and color quality. Current LED displays, for example, can surpass a 1,000,000:1 contrast ratio greater than CCFL-based screens because they provide much deeper blacks and brighter whites.

Other significant merits of LED backlighting are its small size and durability. LED technology makes displays thinner and lighter, allowing for easier integration into sleek devices like ultrabooks and smart TVs. Additionally, unlike CCFLs, LEDs contain no mercury, making them more environmentally friendly.

New technologies like edge-lit and full-array LED backlighting have improved the performance of LED-based displays even more. Full-array LED backlighting improves the contrast and detail provided for high-resolution 4k and 8k panels unparalleled. These changes have further strengthened LEDs’ position as the leading backlighting technology for LCDs, providing today’s standards of energy consumption and environmental friendliness while offering a superior visual experience.

What Are the Different Types of LCD Monitors Available?

Types of LCD monitors are often stratified based on an individual’s functionality and customization preferences. They include:

Twisted Nematic (TN) Panels – Fast response and refresh rates make TN panels particularly appealing to gamers. The tradeoff is narrow viewing angles and poor color reproduction.

Vertical Alignment (VA) Panels—Compared to TN panels, VA panels have better color reproduction. They are known to possess deeper blacks, which can enhance the movie-watching experience due to a high contrast ratio.

In-Plane Switching (IPS) Panels – Used widely by the design and photographic industries, IPS panels are unparalleled in their wide-angle color accuracy and precise depiction of colors.

Advanced High-Performance IPS (AH-IPS) Panels – A subtype of IPS, AH-IPS panels maintain the unmatched color accuracy and viewing angle of IPS but enhance image quality and power efficiency, enabling use in advanced applications.

While each type varies in strengths and weaknesses, use cases range from gaming to professional work and casual use.

IPS LCD Panels: Better Color and Viewing Angles

Compared to older technologies like TN (Twisted Nematic) or VA (Vertical Alignment) Panels, IPS (In-Plane Switching) LCD panels excel in their color reproduction and viewing angles. The newer liquid crystal alignment of IPS panels permits the observer to enjoy reasonably consistent image quality from multiple viewpoints, usually up to 178 degrees, without major color shifts or brightness reductions.

One of the significant benefits of IPS panels is the extraordinary color uniformity they provide. Modern IPS displays can replicate the sRGB color range with a coverage of about 99%. In addition, many high-end models now offer wider ranges, like Adobe RGB (98%) or DCI-P3 (95% ), essential for tasks such as photo editing, video production, and graphic designing. Also, many upper-end IPS monitors equipped with HDR (High Dynamic Range) features further expand details to images and videos, enhancing the depth of colors and contrast, making them more eye-catching.

Traditionally, IPS technology had the disadvantage of slower response times than TN panels. More recently, however, this gap has significantly been narrowed. Competitive gamers are well-served by the latest IPS monitors designed for gaming, which feature outrageously low response times of 1 millisecond, astonishing refresh rates of 240 Hz, and other industry-leading specs.

Most IPS monitors offer strengths in brightness, with some able to achieve PR values of 300–600 nits and above, allowing these monitors to function in various lighting conditions. These panels also yield good uniformity, lessening problems such as hue shifts and hotspots caused by poor-quality displays.

To summarize, IPS LCD panels are a perfect compromise for users who need precision in color reproduction and wider viewing angles. Because performance is not sacrificed, they suit casual and professional users.

TFT LCD and Color Reproduction Capabilities

Color reproduction accuracy is essential in display devices, and TFT (Thin-Film Transistor) technology significantly enhances this trait. In TFT displays, each pixel is connected to a transistor, providing more selective manipulation of the pixel’s color and brightness level. Consequently, vibrant and accurate color reproduction is possible, so high-resolution devices commonly opt for TFT LCDs.

Most modern TFT LCDs offer coverage for color gamuts such as sRGB or AdobeRGB, catering to the needs of photographers, graphic designers, and video editors. For instance, many high-end TFT displays can achieve more than 100% sRGB coverage, faithfully reproducing any digital content as intended. Also, more sophisticated backlighting forms like LED or quantum dots have significantly transformed the display’s color quality and brightness, reaching 400 to 500 nits of peak brightness or higher.

To summarize, users enjoy innovative, dynamic visual experiences as TFT LCDs blend advanced inventions with utility while maintaining excellent color reproduction and dependability. This is why event industries continue incorporating devices such as smartphones, tablets, and monitors equipped with TFT panels.

Positive LCD vs Negative LCD: What’s the Difference?

The most distinctive difference between positive and negative LCDs is their appearance in displays and the amount of backlighting required. A positive LCD has dark text or graphics on a light background. It usually uses a reflector or a transmissive layer, enhancing visibility in bright surroundings. Expect these displays in devices such as calculators, wristwatches, and industrial tools where natural and ambient light must be crystal clear.

Negative LCDs, in contrast, have light text or graphics set against a dark background, offering a modern look. Heavily negative LCDs use a lot of energy as they require more backlighting to remain visible, which is not as pronounced with positive displays. The latter does perform exceptionally well in low-light environments or other places where minimal glare is needed, making them ideal for car dashboards, consoles, and other operating displays set in dim environments.

Concerning contrast ratios, negative LCDs are favored in cases where deeply defined contrast is of utmost importance. For example, they can achieve contrast ratios over 500:1 in controlled lighting, while positive LCDs are more visible in natural light because of their reflective surfaces. Tend to choose one or the other based on particular use cases—which optimally blend factors such as energy use, design appeal, surrounding light, and lighting conditions.

How Do I Choose the Best LCD Monitor for Gaming?

Remember the refresh rate, resolution, response time, and panel type when selecting the ideal gaming LCD monitor. Smooth gameplay is ensured with high refresh rates (over 120Hz), while low response times (1ms to 5ms) help lessen motion blur. With resolution, your options are a minimum of 1080p or 4K and 1440p if your hardware permits. Moreover, panel types are important—TN panels are inexpensive and fast, IPS panels have wider viewing angles with colorful displays, and VA panels have more excellent contrast. Lastly, look for G-Sync or FreeSync adaptive sync technologies to mitigate screen tearing. Balancing these specifications in your budget will find you the perfect gaming monitor.

Refresh Rate and Response Time for Gaming LCDs

Refresh rates and response time are two critical factors that, when properly configured, affect your gaming experience. The refresh rate is the number of times a display monitor refreshes its image within a second, mathematically expressed in Hertz (Hz). Competitive gamers prefer monitors with high refresh rates, even exceeding 120Hz, since they improve game movement while reducing motion blur when playing high-speed games. Some newer monitors even offer a refresh rate above 240Hz, spiking fluidity for esports gamers.

Response time refers to how fast a pixel changes from one color to another, usually measured in milliseconds. The lower the number, the better, for example, 1ms. Modern gaming monitors with IPS or TN panels have lower response rates, making them versatile in various gaming situations.

Pairing low response time with a high refresh rate offers the best graphic results when playing fast-action games. Many producers today implement technologies like Adaptive Sync (G-Sync or Freesync), which helps manage the refresh rate for balanced game flow.

Color Reproduction and Contrast Ratio in Gaming Monitors

Accurate color reproduction is essential for gamers, especially those who indulge in creative work or gaming for leisure. Today’s gaming monitors have a wide color gamut that covers sRGB and stretches to DCI-P3 or AdobeRGB for richer and more accurate colors. For example, many high-end monitors now have over 90% DCI-P3 coverage, offering deep and lifelike hues, helping further enhance the immersive experience.

The display’s contrast ratio directly affects how gamers see bright and dark colors on the screen. The contrast ratio of the latter is just as important, with the IPS panel’s 3000:1 static contrast ratio providing better depth and detail within darker scenes compared to TN and IPS panels. Plus, IPS panels are better for color accuracy and viewing angles. HDR (High Dynamic Range) technology and other innovations improve a monitor’s contrast performance significantly, with some monitors certified to support HDR400, HDR600, or even HDR1000, delivering enhanced dynamic highlights and visual depth than ever before.

These factors play a significant role when selecting a gaming monitor. Whether playing competitive, fast-paced gaming or visually driven gameplay, each needs to focus on a different aspect, ensuring a balance between performance and visuals.

Screen Size and Resolution Considerations

While considering screen size and resolution, I pay particular attention to how they align with my gaming preferences and work setup. Large screens such as 27 inches and above are perfect for immersion, mainly with 1440p or 4K for breathtaking visuals. However, I also consider my desk space and how far my seating position is to ensure that the size isn’t too overpowering for the setup. I prefer a smaller screen with a higher refresh rate for better responsiveness for fast-paced games. It’s all about customization.

What are common LCD problems, and how do you fix them?

Dead or Stuck Pixels: Dead pixels appear as black dots on the screen, while stuck pixels appear as a solid color. You can attempt to fix the issue by using screen repair software or gently rubbing the pixel in question with a cloth to ‘wake it up.’

Backlight Bleeding: A typical problem is the screen’s uneven brightness around the borders. Consider dimming the monitor’s brightness or positioning the display differently. In extreme situations, warranty replacement is advised.

Screen Flickering: Flickering may be caused by loose cables on the monitor, an incompatible refresh rate, or an older driver. All wires should be securely connected, the refresh rate should be set at compatible levels, and the graphics driver should be updated.

Image Retention or Burn-In: Keeping a static image on the monitor for too long can cause lesser-known, temporary image retention. The fix is as simple as ever: use a screensaver or change the content displayed, and if available, enable pixel-shifting options.

Color Distortion: Broken color cables and color calibration may cause distorted colors. Check and replace cables if needed, then adjust using the monitor controls or calibrating software.

To improve the lifespan of your LCD and viewing experience, ensure that it is maintained and resolve issues as they arise.

Dealing with Dead Pixels and Screen Burn-in

What Are Dead Pixels: Dead pixels appear when single pixels on LCD monitors no longer respond to the instructions from the display. These look like tiny black, white, or colored dots on the screen obstructing viewing. Dead pixels may be fixed with either pixel-fixer software or by lightly rubbing the affected area with a soft cloth, also known as a pixel massage. Some recent studies suggest that dead pixels may resolve on their own, albeit partially, depending on the reason causing the dead pixels. On the other hand, if the problem remains and numerous dead pixels exist, the monitor may need to be replaced or repaired, as warranties could cover such defects depending on the manufacturer.

Screen Burn-in: Screen burn-in is often caused when a static image is left on a device for too long, resulting in a faint ghost-like mark that is visible even when the device is changed. While screen burn-in is a common issue for OLED displays, LCD screens can also suffer. Changing screen content or enabling “pixel shifting,” which hops the displayed image slightly, helps mitigate screen burn-in. Research suggests that using screen savers or changing the displayed content frequently reduces the risk of burn-in significantly. Screen refresh or pixel-refresh cycles can minimize the visible effects of burn-in markings on the screen if available.

Backlight Bleeding and Edge Illumination Issues

Backlight bleeding happens when light escapes around the edges of the monitor screen when viewed in dark scenes. It is a common issue in LCD monitors that worsens due to inconsistencies in the assembly of the LCD panel. The diffusion of the panel’s backlight also suffers from imperfections. Displays that feature LEDs placed at the edge of the screen are also prone to uneven illumination, which is known as edge illumination.

Research shows that backlight bleeding is much more common in cheap monitors, as they are made using inferior components. Take, for example, some edge-lit LCDs that demonstrate noticeable brightness differences of up to 15% on the screen. This grave light distortion can severely compromise the view quality, especially in nighttime or dark ambient settings.

Manufacturers of the model recommend using full array backlit displays or Direct LED backlit models, which mitigate these issues with evenness of coverage. Besides these suggestions, users suffering from backlight bleeding can improve their situational view by optimizing the screen angle, lowering brightness, and setting the backlight to reasonable levels. Furthermore, these issues are being addressed by newer technologies like mini-LED panels that provide greater control to areas of localized dimming, thus reducing light leakage and improving consistency.

Eye Strain and LCD Monitor Settings

Proper configuration of your LCD monitor can significantly minimize eye strain, which is considered a big problem for users who work on computer screens for long periods. In particular, brisk lightness, sharpness, blue light emissions, and refresh rates must be considered. It has been shown that bright monitors set to around 100-150 cd/m² of brightness in a well-lit room reduce discomfort. Also, the blue light emissions can be filtered through the program settings or additional filters to minimize any added strain on the sleep cycle because the high-intensity blue light stops melatonin from being produced.

The contrast settings also need to be adjusted—60–70% is a good value for most work that does not require precise measurements since it may extend the possibility of clearly readable text while reducing strain. Higher refresh rates, such as 75 Hz or 120 Hz, have been shown to minimize flickering and blurriness over extended periods. Night mode or dynamic dimming does help most modern LCD monitors adapt the display to surrounding light for more natural viewing.

How Energy Efficient Are LCD Displays?

LCDs are considered more energy efficient than older technologies such as CRT displays. This is because the liquid crystals and LED backlighting require minimal energy. Although energy consumption differs from one device to another based on screen size, brightness levels, and usage patterns, more recent LCD models are built to reduce energy consumption. Many LCDs also feature Eco modes, which reduce power use further, saving on costs and protecting our environment.

Power Consumption of LCDs vs Other Display Types

Overall, television LCDs remain the most energy-efficient surgical spirit southern ferrets display technologies make use of. Other newer technologies, such as OLED sore ran uncultured and Plasma, are highlighted below. Even older LCDs have improved considerably when transitioning from CCFL backlighting to LED backlighting, significantly reducing energy usage. Consider a 42-inch LCD television, whether it obsessively scans business letters or is used for watching movies: it parasitically consumes about 70 to 120 watts. Conversely, an OLED television uses nearly 90 to 150 watts depending on brightness levels and usage.

Plasma Televisions are the bad boys of energy conservation, being the most wasteful piles of energy of them all and sucking in over 150 to 300 watts for a television of similar screen size. While not as good as reach-capturing OLED displays, these television beasts have impressive image quality and great black depths.

Electric slides, though weakened in general image quality due to sophisticated microdisplay techniques, outrank OLEDs for image display accuracy in subjects where bright details make up more than LCD-supported content. On the other hand, LCDs dependably miscalculate their power consumption no matter the content’s brightness. This dependable miscall makes LCDs a better fit for users trying to cut down energy expenses than other types of displays.

MicroLED, on the other hand, is a new paradigm left with the chances itself revealed. It claims to have power-saving features, as depicted by other claims, and unparalleled image quality, but it fails in the last attribute when scaled to screen size. Whatever the usage leader made microLED more viable.

While worse, with everything aside from claimed to deliver optimal performance and heavily marketed features, energy consumption depends heavily on scenario and screen size.

For people focusing on sustainable practices and saving money, LCDs with energy certifications like ENERGY STAR and lower operational wattage are handy, making them practical. These features make them most suitable for places that require energy conservation.

RGB LED Backlights and Energy Efficiency

RGB LED backlights are engineered to preserve energy while offering vivid and accurate performance colors. Compared to conventional CCFL backlights, CCFL backlights consume less energy due to RGB LED’s directed output, which reduces light waste. Research suggests that displays with LED backlighting can save energy by 2030 percent, in contrast to older fluorescent backlight technologies.

Dynamic brightness adjustment is one of the main benefits of RGB LEDs. For example, darker scenes require less intensity from the backlight, which decreases power consumption. In addition, the LED backlight’s lifespan of over 50,000 hours reduces the frequency of replacements needed, lowering electronic waste and helping environmental sustainability.

Calibration data indicates that the quality benchmarks for RGB displays certified for energy efficiency, like those for other standard monitors, show their consumption at 30-40 watts. In comparison, regular LCD models use up to 100 watts. Such findings make this technology preferable for eco-conscious consumers and corporations while maintaining performance.

Ways to Reduce LCD Monitor Power Usage

Adjustment of Brightness Settings: Reducing the brightness on an LCD monitor is one of the easiest and most practical ways of saving power. A monitor set at the maximum brightness level consumes more energy than one set between 50% and 70% brightness. For example, on some devices, dropping the brightness level from a maximum of 50% can reduce energy usage by 20% to 40%.

Enable Energy Saving Modes: Modern LCD monitors have power-saving features or eco modes. Activating these modes optimizes display performance and backlighting to conserve energy. Eco modes have been shown to reduce energy consumption by up to 30%.

Use a Timer or Sleep Mode: Program your monitor to sleep after inactivity. Monitors are asleep for an extended period shift of less than 1 watt, which is more efficient than the 20-50 watts active mode power devices may draw.

Stop Using the Monitor to Save Power: Turning off the monitor entirely is the easiest way to save energy if it is not in use. A turned-off monitor does not consume any power, and even sleep mode won’t conserve energy the same way. This will help prolong the lifespan of the monitor.

Purchase New Monitors: There are new energy-saving monitors out there, and investing in them would also be beneficial. These certified monitors, like the low-calorie energy LCD ones, can be a great addition. They typically use 25% less energy than older models that are non-certified.

Reduce Resolution or Refresh Rate: Decreasing the monitor’s resolution will help save energy. A great example would be lowering the refresh rate from 144HZ to 60HZ, which is quite a significant drop. Most daily tasks don’t require ultra-high refresh rates, which won’t be a considerable productivity challenge.

Unplug When Not in Use: Depending on the monitor, even in standby mode, some power is still used. The monitor does not consume any energy when unplugged, so energy usage can drop even more.

The steps above will help curb the more common practices, and by doing so, you and your organization will actively choose to preserve the environment.

Reference Sources

I’ve gathered and summarized the key findings and methodologies from recent studies on LCDs published in the last five years. Here’s an overview:

1. Internet of Things-Based Control and Monitoring of LCD Projectors1:

   • Key Findings: This study developed a system to control and monitor LCD projectors using IoT remotely. It achieved real-time updates within 3 seconds and effective communication up to 2 meters using infrared sensors. The system also detected temperature and light intensity changes efficiently.
   • Methodology: A prototype was created using a research and development approach, employing sensors and a Firebase real-time database for data transmission.

2. Motion Detection with LCD Display2:

   • Key Findings: Arduino Uno and ultrasonic sensors were used to design a motion detection system. It displayed object distances on an LCD, with LED and sound alarms for proximity alerts. The system demonstrated high accuracy in distance measurement.
   • Methodology: The hardware included Arduino Uno, LEDs, buzzers, and ultrasonic sensors. The software was programmed using Arduino IDE, and the system was tested for precision in distance sensing.

3. Impact of Typeface and Colour Combinations on LCD Display Legibility3:

   • Key Findings: The study analyzed how typefaces and color combinations affect reading speed and legibility on LCDs. It found transitional typefaces like Georgia were more legible than sans-serif typefaces like Verdana. Red text on light grey or white backgrounds provided the fastest reading speeds.
   • Methodology: Eye-tracking technology was used to measure reading speed and fixations. Controlled experiments tested various typefaces and color combinations on a high-resolution LCD.

4. Advanced Fault Detection in Smart Meter LCDs4:

   • Key Findings: A novel method for detecting defects in smart meter LCDs was proposed, achieving higher accuracy and recall than existing methods. The system categorized defects into standard display and liquid crystal rupture.
   • Methodology: The study used a Multimodal Contrastive Domain Sharing Generative Adversarial Network (MCDSGAN) for defect classification, optimized with the Red Fox Optimization Algorithm. Preprocessing involved noise removal using a Window Adaptive Extended Kalman Filter.

These studies highlight advancements in LCD technology, focusing on IoT integration, motion detection, legibility improvements, and fault detection.

Frequently Asked Questions (FAQs)

Q: What is the basic principle behind LCD (Liquid Crystal Display) technology?

A: LCD technology operates by manipulating light through a layer of liquid crystal material sandwiched between two transparent electrodes. Unlike light-emitting diode displays, LCDs don’t emit light themselves but instead modulate external light sources (typically an RGB backlight or fluorescent lamps). When voltage is applied, the liquid crystals realign to either allow or block light that passes through them, creating the image we see. LCDs have replaced older display technologies in various applications, from smartphones to large TVs.

Q: How does an LCD monitor differ from an OLED display?

A: The fundamental difference is that an LCD monitor requires a backlight as it cannot emit light itself, whereas an OLED display has pixels that individually emit light. LCDs use a liquid crystal light valve system to control light passage from the backlight, while OLEDs use organic compounds that light up when electricity is applied. This key difference gives OLED displays better contrast ratios and deeper blacks since they can turn individual pixels completely off, while LCD screens always have some light leakage. However, LCD technology dominates the market due to lower production costs and longer lifespan.

Q: What are the advantages of an LED monitor over traditional LCDs?

A: An LED monitor is an LCD that uses light-emitting diode backlighting instead of cold cathode fluorescent lamps (CCFLs). The advantages include a thinner display design, reduced power consumption, better brightness, improved contrast, and longer lifespan. LED backlighting also allows for local dimming in premium models, where different screen zones can be dimmed independently for better image quality. Many LCD monitors now use RGB LEDs, providing a wider color gamut and more accurate color reproduction across the entire screen.

Q: What is a Color TFT LCD, and how does it work?

A: A Color TFT LCD (Thin-Film Transistor Liquid Crystal Display) is a flat panel display that uses active matrix technology. Each pixel on the screen is controlled by 1-4 transistors, allowing precise control over the image. The display has multiple layers, including color filters (typically RGB), polarizers, and a layer of liquid crystal material. TFT technology enables higher resolution, faster response times, and better color reproduction than passive matrix displays. This makes color TFT LCD the dominant technology in everything from smartphones to computer monitors, offering many pixels for detailed images.

Q: How does an LCD projector create images?

A: An LCD projector creates images by passing light through small LCD panels. It typically consists of a layer of three LCD panels—one each for red, green, and blue components. The light source (usually a metal halide lamp or laser diode) shines through these panels, where the liquid crystal elements act as gates, controlling how much light each color passes through. The RGB backlight system is precisely controlled to produce the correct color for each pixel. These colored light beams are then combined through a prism and projected onto a screen using a lens system, creating the final image displayed to viewers.

Q: What’s the difference between segment LCD and matrix display?

A: Segment LCDs (like those in digital watches or simple calculators) have pre-formed character display elements where entire segments are turned on or off to form patterns. They’re limited to displaying predefined shapes and cannot show arbitrary images. In contrast, a matrix display consists of a grid of pixels that can be individually controlled. This flat-panel display type can show any image by activating the appropriate pattern of pixels. Matrix displays come in passive and active (TFT) varieties, offering better image quality. While segment LCDs are simpler and use less power, matrix displays provide the versatility needed for modern applications.

Q: What is Advanced Fringe Field Switching in LCD technology?

A: Advanced Fringe Field Switching (AFFS) is an improved version of LCD technology that offers wider viewing angles and better image quality. It generates an electric field parallel to the panel plane (a “fringe field”) that controls the liquid crystal molecules throughout their entire layer, not just at the surface. This results in better light transmission, improved color accuracy, and visibility from almost any angle. AFFS technology is particularly valuable in professional flat panel display applications where accurate color reproduction is critical, and it provides better performance than traditional TN (Twisted Nematic) displays while being more cost-effective than OLED technology.

Q: What allows LCD screens to retain an image even when power is removed?

A: Unlike plasma or OLED displays that require constant power to maintain an image, certain types of LCDs can display static content even when power is removed. This is possible through bistable liquid crystal technologies like cholesteric displays. These special liquid crystal materials can maintain two stable states without power, making them ideal for e-readers and electronic shelf labels. The liquid crystals remain in their last position until actively changed by an electric field. This creates a display without constant power requirements, perfect for devices that don’t need frequent screen updates, though they typically can’t display video or rapidly changing content.

Q: How has 4K LCD technology changed the monitor market?

A: 4K LCD technology has revolutionized the monitor market by delivering four times the resolution of standard HD displays. With approximately 8.3 million pixels (3840×2160), 4K LCDs offer unprecedented detail and clarity. This higher number of pixels enables sharper text, more precise image editing, and more immersive gaming experiences. The technology has also driven advances in LCD panel fabrication, including improved liquid crystal materials and more efficient RGB backlight systems. While initially expensive, manufacturing improvements have made 4K LCD monitors increasingly affordable, leading to widespread adoption in professional environments first and now in consumer markets, particularly for larger screen sizes above 27 inches.
