Application for Broad Band Impedance RF Balun Transformer

Application for broad band impedance RF balun transformer

Product Description:

Providing with quality and standard customer-made electronic and passive components switching transformer and solution products, Fullstar Electronics is a leading switching transformer manufacturer and supplier in China. welcome to wholesale electronics flyback transformer, step-down transformer, high-frequency transformer, audio transformer, smps transformer from our factory.

Features:

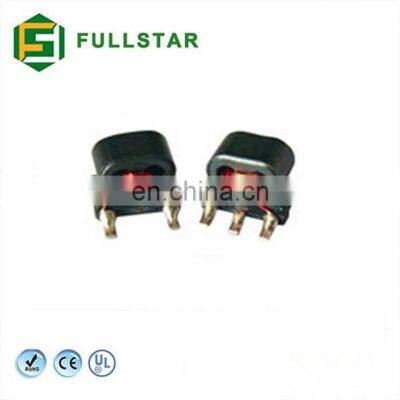

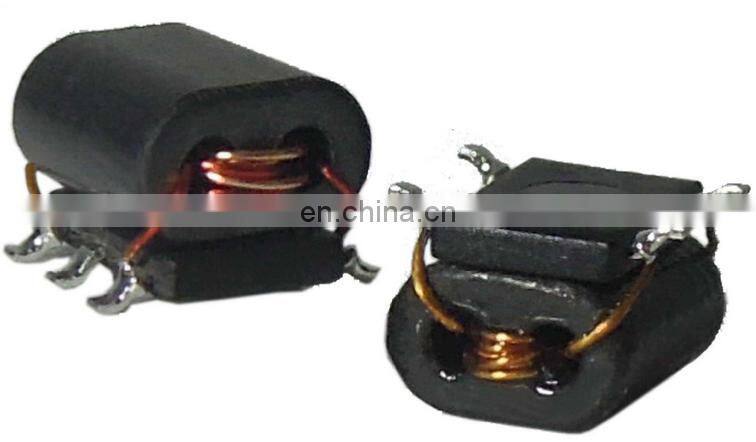

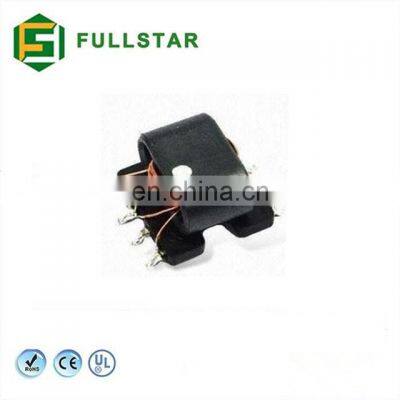

BALUN TRANSFORMER
Features : Available in various size, Base pin terminal treated, Low profile SMD balun coil

In surface mounting

Pair wire coil for high stability

Low profile

Common mode dual micro-array

Broadband transmission devices, Impedance transmission
CT Impedance available : 2:1 ,
Characteristic Impedance available: 50Ω
Frequency : 2 to 350MHz ,
RF Power : 2.0W
DC Current : 30mA
Insertion loss : 1.5dB MAX;

Input Return loss : 12.0dB Min
Operating temperature range: -40℃ to +85℃

Storage temperature range: -55 ℃ to +100 ℃

Customized specifications are accepted .

RoHS Certificate

Mterials :

Core: Ni-zn

Wire: QA Enameled copper

Base : customized

Terminal: Tin copper

Adhesive : Epoxy resin

Applications: Double balance mixers, broad band impedance transformers, directional couplers of mixers, matching power combining and splitting ,set-top -box and cable modem.

Fullstar Type Series:
FB3F SERIES
FB4F SERIES
FB5F SERIES

Packaging&Shipping:

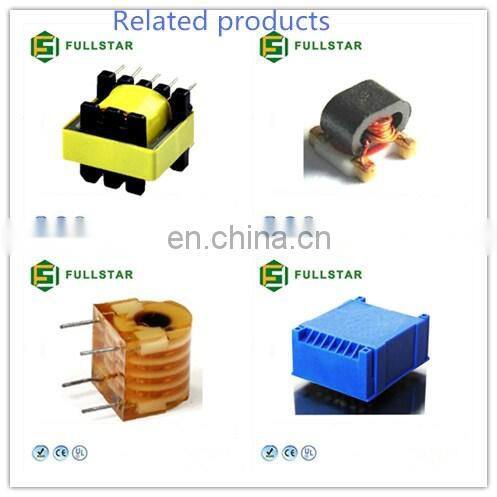

Related products:
