Heat Check Label for Transformer in Substation /Irreversible and Reversible Combined
- Narita
You May Like
-
Heat Check Label for Electrical Tools Security Maintenance/Waterproof, Outdoor Use OK
-
Adhesive Heat Controller Label/Irreversible and Reversible Combined Temperature Label
-
Reversible Thermo Sensor With Indicator Single-use in Center Part/Temperature Indicating and Recording Labe
-
Robust and Waterproof Temperature Indicator Tape Widely Used for Industrial Tools, Industrial Application
-
No Wiring and Battery Required Temperature Monitoring Systems/Combination Thermo Label
-
Temp Recording and Indicating Label/Irreversible and Reversible Combined Temperature Indicator/Waterproof
Product Details
| Place of Origin | Japan | Brand Name | Thermo Label | |
| Model Number | O | Usage | Other, Temperature Indicator | |
| Phase | Other, - | Coil Structure | Other, - | |
| Coil Number | Other, - |
Standard safe packing
Product Description
Combination Thermo Label®O is a combination temperature indicator which consists of both irreversible and reversible temperature indicator to show past temperature record and current temperature. Widely used as heat check label for transformer in Japanese substation .
- Combination of Reversible and Irreversible temperature indicator
- High accuracy:±2deg.C
- Multiple-use
- Outdoor use/Waterproofed (Lifetime: 3 years outdoor use/ 5 years indoor use)
- Self-adhesive and easy to apply on various location
- Temperature range:
- Center part (Irreversible) from 70-100 deg.C
- Base part (Reversible) 70 deg.C

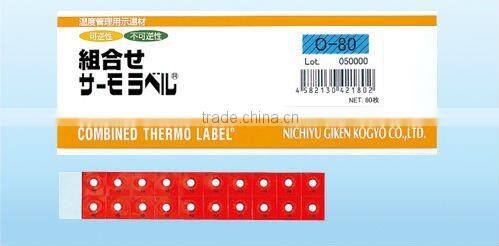

Product variation
| PN | Reacting part (Irreversible) | Base part (Reversible) | JAN code | ||
| Color Change Temperature (°C) | Color Change | Color change temperature (°C) | Color change | ||
| O-70 | 70 | White→Reddish orange | 70 | Red←→Dark brownish purple | 4582130421796 |
| O-80 | 80 | White→Blue | 4582130421802 | ||
| O-90 | 90 | White→Red | 4582130421819 | ||
| O-100 | 100 | White→Dark red | 4582130421826 | ||
- Size: 10mm x 10mm
- Payment Terms: 100% advanced payment before shipment only
- Our products are strictly under the control of ISO9001: 2008 QC system.
- RoHS Non compliant
Package Design

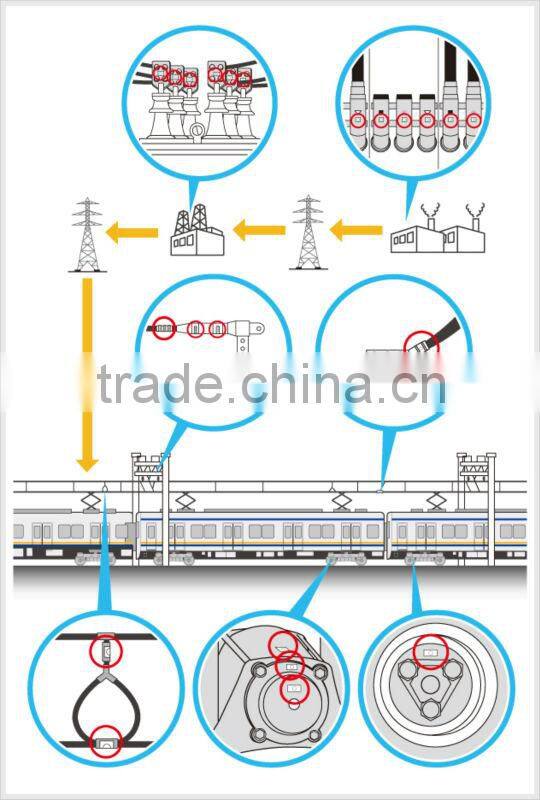

This products can be used for....
Detecting unusual temperature rise of electric power equipment, connection terminal at substation, power distribution equipment and etc...
