P800 Pile Sonic Integrity Equipment Low Strain Impact Test
- T/T Credit Card
You May Like
-
2020 P800 Low Strain Foundation Pile Monitor Sonic Integrity Test
-
Echo PIT Pile Integrity Test for Bridge Repair Rebar Trend High Maintenance
-
Pile Integrity Tester
-
Advanced Non-metallic Cross Hole Ultrasonic Logging Test for Piles
-
GTJ-P800 Wireless Sonic Pile Integrity Testing Machine
-
Concrete Testing Equipments Foundation Pile Dynamometer
Product Details
| Brand Name | GTJ | Place of Origin | Hebei, China | |
| Model Number | P800 | Power | Electronic |
Product Description

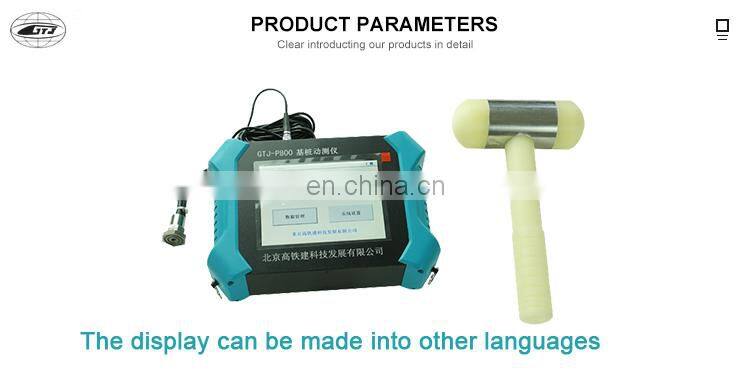

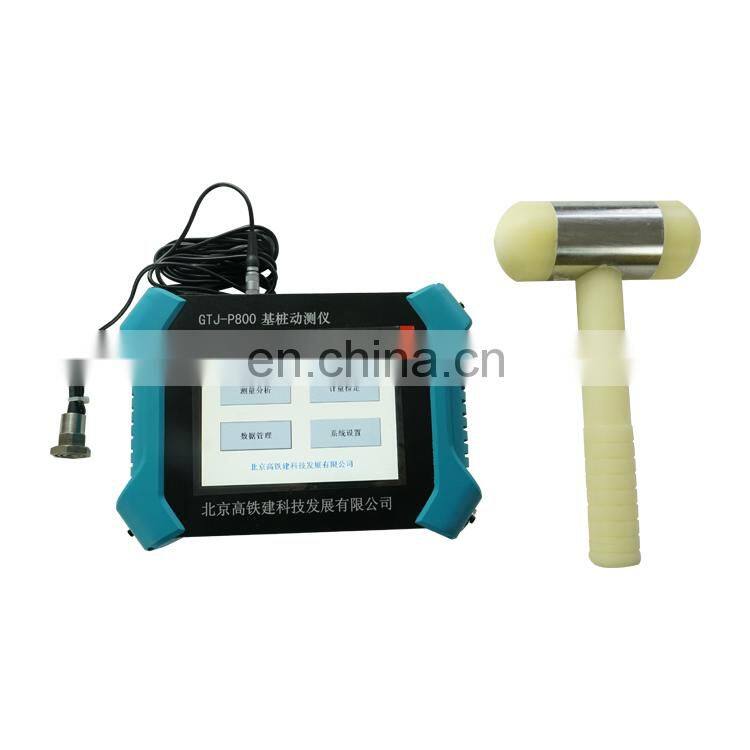

P800 pile sonic integrity equipment low strain impact test
The dynamic testing instrument for foundation pile is a test and analysis instrument for testing the structural integrity of foundation pile and the vertical bearing capacity of single pile under impact or vibration load in the process of pile integrity testing and monitoring of prefabricated pile. The purpose is to determine the bearing capacity and structural integrity of pile.
specifications and models | GTJ-P800 |
System noise voltage | less than2mV |
dynamic range | greater than138dB |
Amplifier band | 10Hz~10kHz |
A/Dresolution ratio | 16bitA/D |
sample interval | 2us~32768us |
sampling length | 1024,2048,4096 |
Time indication error | less than1% |
number of channels | 1 |
magnification times | 1~128 |
trigger mode | signal to trigger |
transducer sensitivity | 100mV/g |
Sensor band | 1-10000Hz |
continuous working period | greater than10hour |
power supply | Built-in rechargeable lithium battery(+7.4V) |
display screen | 640*480 capacitive touch screen |
operating mode | touch |
weight:1.24Kg size:220*160*50 | |
![]() |
Display

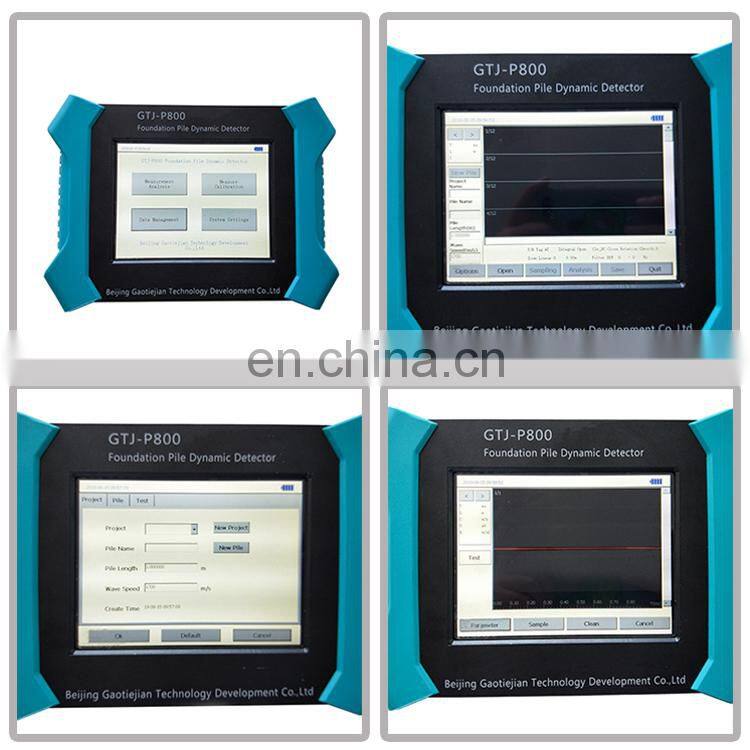

Display 2.8-inch high-resolution color LCD screen for clear and simple display
| 1 |
| 2 | Supports multiple waveform processing methods to make defect location more accurate | ![]() |
![]() |
Small size, light weight, easy to carry
| 3 |
| 4 |

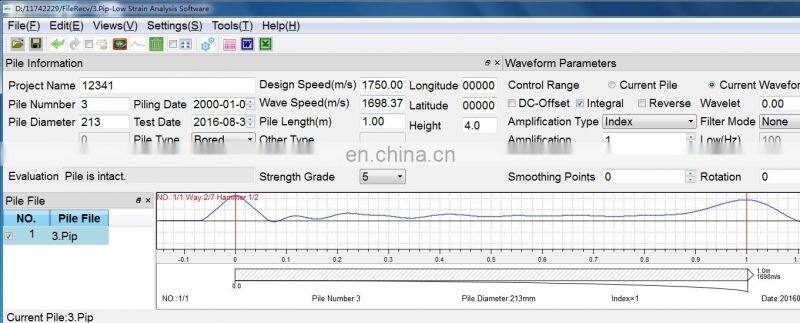

Windows platform analysis software features comprehensive, flexible printing Settings, can print preview and output processing results;Generate test report. | ![]() |
| ||
| Features | |||||
| 1 | The instrument is easy to operate and users can quickly master the method of using it based on the requirement of engineering testing | ||||
| 2 | Small size, light weight, easy to carry | ||||
| 3 | User through the touch screen operation, the interface is simple; | ||||
| 4 | Support multiple waveform processing methods to make defect location more accurate;; | ||||
| 5 | Large data memory, support mobile storage; | ||||
| 6 | Built-in rechargeable lithium battery, long standby time; | ||||
| 7 | Windows platform analysis software features comprehensive, flexible printing Settings, can print preview and output processing results;Generate test report. | ||||

Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
