Home > Products > Ready to ship products > Nema 34 1.2degree 4 Wire 4.5A 3phase 98mm Length 450N.cm Holding Torque Square Stepper Motor Shaft Options Single D-cut
Nema 34 1.2degree 4 Wire 4.5A 3phase 98mm Length 450N.cm Holding Torque Square Stepper Motor Shaft Options Single D-cut
US$ 38 - 42.5
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
Nema 34 1.8 Degree 4 Wire 5.6A 2.8A 4A 2phase Single D-cut Round Shaft 126mm Length 900 640N.cm Holding Torque Stepper Motor
-
Nema34 1.8degree 4wire 5.6A 2.8A 4A 2phase Single Double D-cut Key Shaft 114mm Length 820 580N.cm Holding Torque Stepper Motor
-
Nema 34 1.8 Degree 4 Wires 5.6A 2.8A 4A 2phase Single Double D-cut Key Shaft 78mm Length 420 4Nm Holding Torque Motor
-
Nema34 1.8degree 4wire 5.6 2.8 4A 2 Phase 98mm Length 650 490N.cm Holding Torque Brake Stepper Motor Shaft Options Single D-cut
-
Nema 42 1.8degree 4 Wire 6A 2 Phase Key Shaft 100mm Length 12N.cm Holding Torque Square Stepper Motor
-
0.9 Degree 4 Wire 1.7 2.3A 2 Phase 48mm Length 42N.cm Square Nema 17 Stepper Motor Shaft Options Single Double Round D-cut
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB86T Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
This stepper motor (MPN PHB86T98-345) is supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). It's a bipolar NEMA 34 hybrid stepper motor with 1.2° step angle (300 steps/revolution), made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 4.5A per phase, allowing for the holding torque of 450Ncm (636oz-in). This high-performance and high-reliability motor is terminated with 3 flying ended lead wires, and easily connected to the constant current or chopper drive controller.

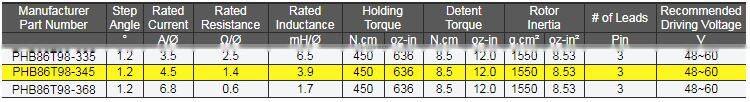

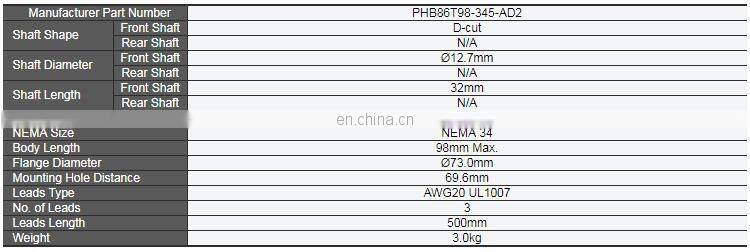

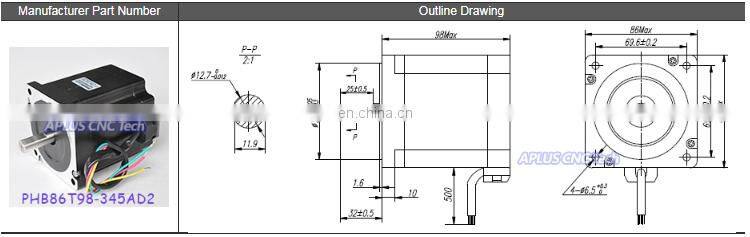

NOTE: 1.This stepper motor (MPN PHB86T98-345) will be supplied to you with dia.12.7mm D-cut shaft (part number PHB86T98-345-AD2), and the detailed info could be found in the following two tables.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
