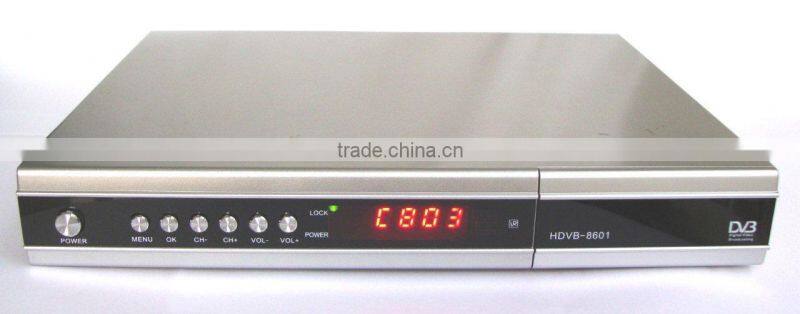

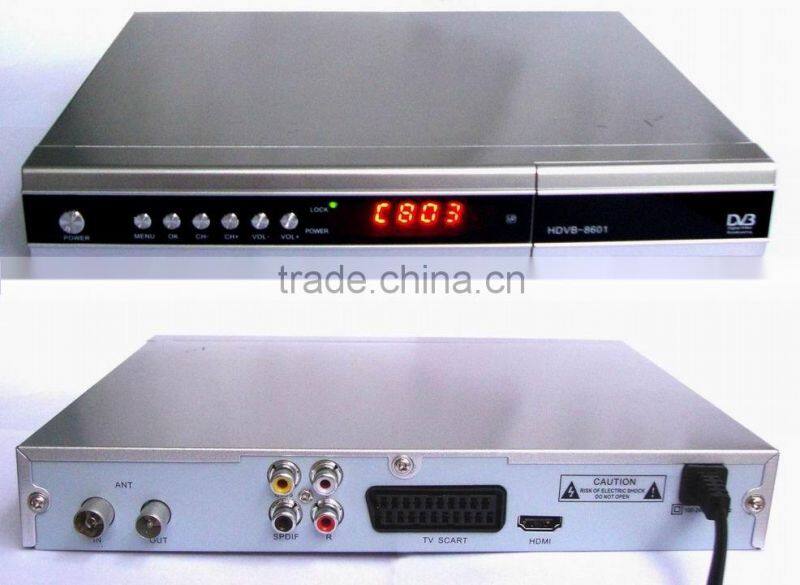

DVB-T for MPEG-4/H.264 TV Tuner

DVB-T MPEG-4 receivers:

Key Features:
•Receiving HDTV (1080P) signals (MPEG-4 AVC/H.264 and MPEG-2)
•Support PVR function and multimedia playback(MP3/MP4/JPEG/AVI etc) via USB2.0
•MPEG2(), MPEG4 , MPEG4 AVC/H.264 decoding
•Video output resolution: 480i/576i/480p/576p/720p/1080i
•Video decoder up to
•Audio decoding: MPEG 1/2 Layer I&II, MPEG4 AAC/HE-AAC V2(AAC+), Dolby AC-3/AC3+(optional)
•OSD language: English, Czech, Danish, French, German, Italian, Portuguese, Spanish, Swedish etc
•Aspect ratio: Auto, 4:3 Full, 4:3 Pan&Scan, 4:3 Letter Box, 16:9 Wide Screen
•Support 7-day Electronic Program Guide(EPG)
•Support teletext/subtitle/audio language selection
•Capacity for storing up to 1000 channels of TV and radio program
•Outputs: HDMI1.3, SCART, CVBS, SPDIF(Coaxial)
•Auto/manual channel search
•PAL/NTSC auto conversion
•Software upgrade via USB or OTA
•Keys: POWER, VOL+/-, CH+/-, MENU, OK
•4-digit LED indicator
•Standby consumption less than 0.85W (True Standby)

Specification
Tuner & Channel
Input Connector     IEC-169-2 (IEC-type) Female
Frequency Range    48~862MHz
RF Loop Connector  IEC, Male
Signal Level:        -10 to -70 dBm
Demodulation:      OFDM
Mode              2K, 8K
FEC Mode         1/2, 2/3, 3/4, 5/6,7/8
Guard Intervals     1/4, 1/8, 1/16, 1/32

MPEG Transport Stream A/V Decoding
Transport Stream   MPEG-2 ISO/IEC 13818 Transport Stream Specification
Profile Level        MPEG-2 ,MPEG-4 AVC/H.264
Aspect Ratio       Auto, 4:3 Full, 4:3 Pan&Scan,4:3 Letter Box, 16:9 Wide Screen
Video Resolution   480i/576i/480p/576p/720p/1080i
Audio Decoding    MPEG 1/2 Layer I&II, MPEG4 AAC/HE-AAC V2(AAC+),
Dolby AC-3/AC3+(optional)
Audio Mode       Single channel/dual channel/joint stereo/stereo

Audio/Video/Data In/Out
Video            RCA-Type (CVBS), SCART, HDMI
Audio            Audio L/R, SPDIF (Digital Audio Output)
Data             USB2.0

Power Supply
Input Voltage          AC 90~ 250 V, 50/60 Hz
Type                  SMPS
Power Consumption    Max 9W
Protection             Separate internal fuse
