The Most Professional New Design Sausage Twists Cutter Machine

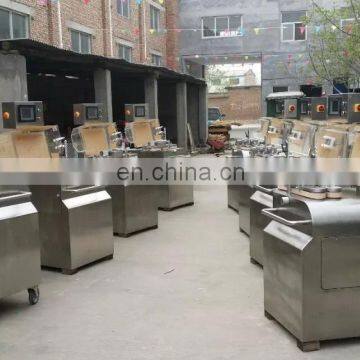

Pictures of sausage twists cutter machine:

The machine is made of high quality stainless steel. The thickness of working table steel is 12mm. it is firm and durable. The surface is polishing solution and beauty shape.

hot dog making machine/sausage making machine

industrial sausage machine

Advanced Servo Motor and Servo driver: BECKNOFF –Made in Germany

High speed computer: BECKNOFF-Made in Germany

General cable control system: ETHERCAT

32 bit true color touch screen, ensure accuracy of operation and real-time display of the data.

Main Functions:

1.  It can cut natural and artificial casing of sausage. Special short product: Cocktail sausages and sausage for chafing dish.

2.  It can be set cutting knots for one line of sausage and several lines. For several lines of sausages, the pieces of sausages of each line can set in the screen.

3.  Fixed length cutting: it can cut even pieces for no knot sausage, min length: 25mm

4.  It can calculate cutting quantity automatically and also can be clearing zero.

5.  It can display cutting pieces per minutes and length of sausage.

6.  Timing stopping if no operation.

Main specifications:

           1.    The casing can be inspected by infrared light electricity sensor. The cutting defective rate is lower than 3‰; high speed and automatic to ensure accuracy and speed of cutting by sensor                                   inspecting.  No need to set the length of sausage in advance.

           2.    It can be set the speed of conveyor belt on the touch screen.

           3.    cutting position can be optimized

           4.    Sausage diameter range: 10-45mm, fixed length cutting max dia. : 30mm

           5.    sausage‘s min length: 25mm, max length: no limit. Belt’s speed is confirmed by top p

                  late’s specification and sausage‘s length, max speed: 1.8m/second. It can reach to 1800 pcs when cutting short sausage.

          6.     380V AC three phase, The power consumption: less 2.0kw

JC999-03 sausage cutter is high quality machine and high quality product guarantee for the customer.

different shape sausage ‘s effective length as follows:

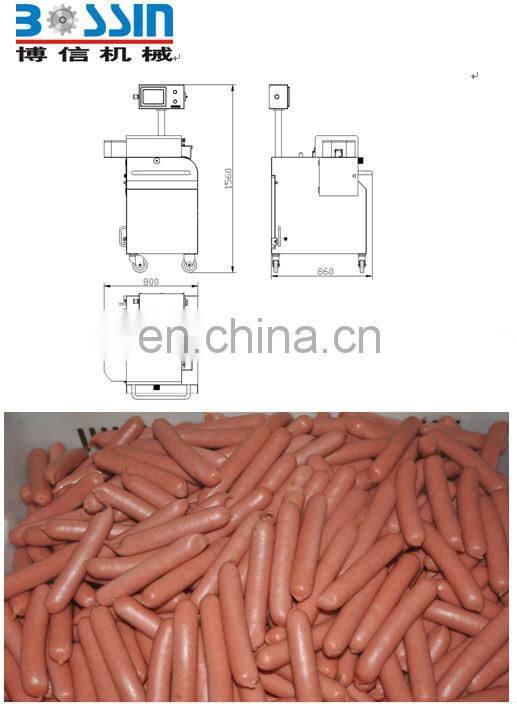

Technical data:

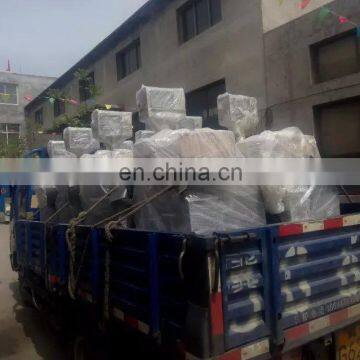

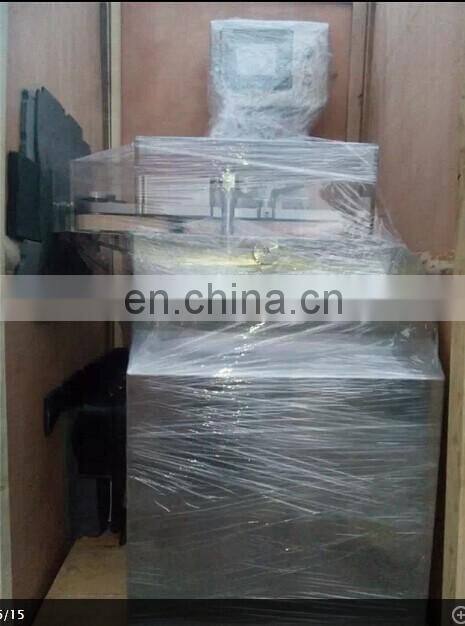

 WOODEN CASE OR SUITBLE FOR SHIPMEN

1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,
train your workers for the correct usage and daily maintenance.

2. Any spare parts you need will be sent to you directly from us.

3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent
to your working site if you can not solve it under our guidance.

Welcome to contact us and we are at your service 24 hours.
call me 0086-15830671682
skype: hellosunny168

ALL ARE BASED ON ISO QUALITY MANAGEMENT SYSTEM AND WITH CE MARK

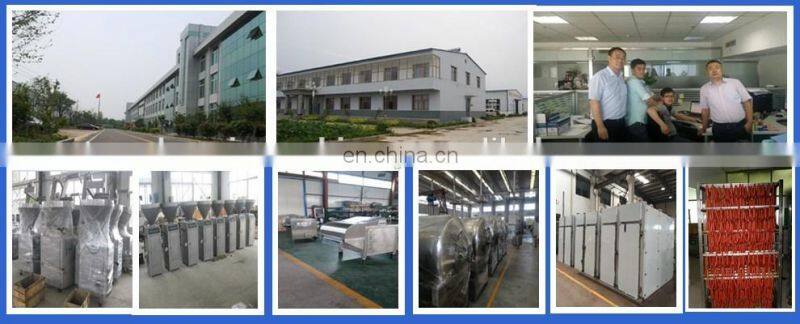

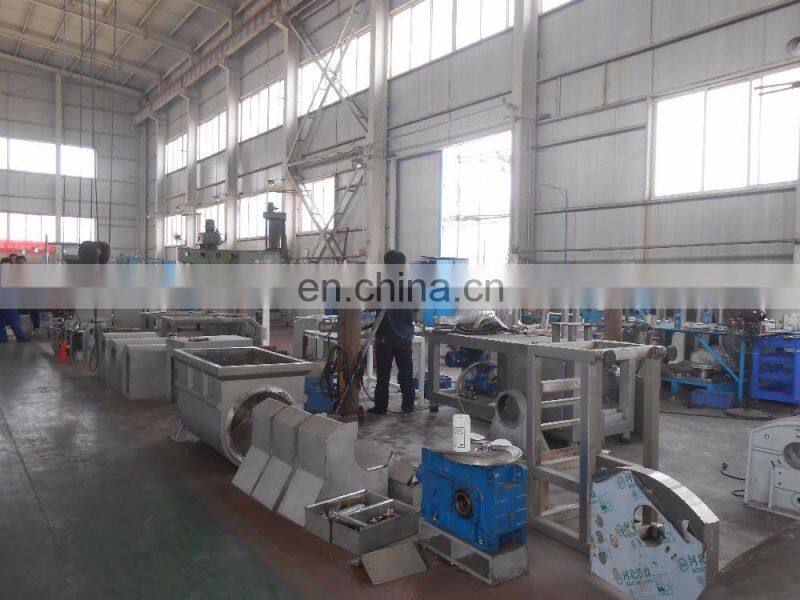

My factory is mainly manufacturing the Meat processing machinery, including all kinds of frozen meat flaker, meat mincer, meat mixer,meat bowl cutter,brine injector, vacuum meat tumbler, sausage stuffer/filler, sausage clipper, smokehouse, sausage cutter and Multi forming and coating machine in application of all kinds of fast food (hamburger, chicken nuggets, fish finger, onion ring etc.),also pasta machines. All of machines are based CE and ISO 9001 standard system. The products have been sold to overseas market such as Southeast Asia, Europe, Middle East and South America and we will go on to develop more markets through many ways. Our factory has abundant manufacturing and export experiences, so we will offer excellent quality of products and best service for all our clients sincerely.
