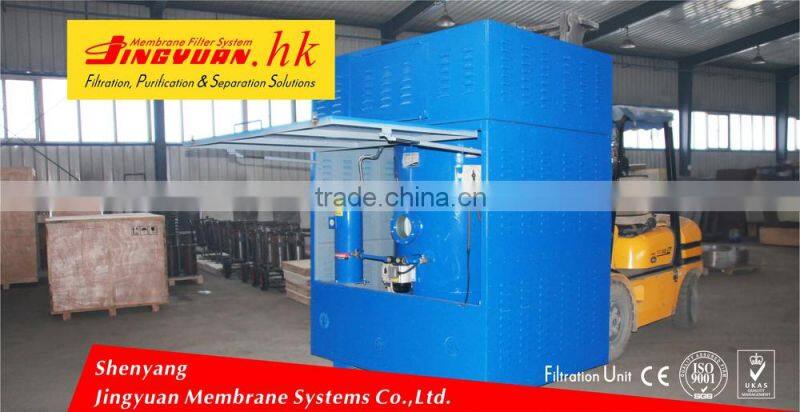

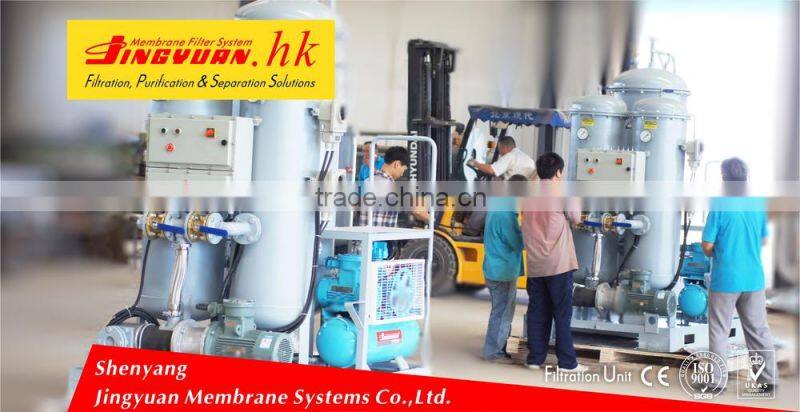

Continued use used engine oil Recycling Machine/purifier machinery for engineering machinery
•New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•Guarantee the cleanness index of industrial oil
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low
| Technical Parameters | 1 | Model Number | JY-G100 |
| 2 | Working Pressure | 0.2~0.35Mpa | |
| 3 | Flow Rate | 60L/min | |
| 4 | Filtration Precision | 2,5,10,15,25μm | |
| 5 | Filtration Material | HDPE,PA | |
| 6 | Applicative Oil | High viscosity industrial gear oil | |
| 7 | Chemical Resistance | Wide Chemical Compatibility | |
| 8 | Type of Filter element | J30-970S | |
| 9 | Power | 380V Electrical Engine | |
| 10 | Dimension | 800×750×1350mm | |
| 11 | Weight | 115KG | |
| 12 | Service Life of Filter Element | 2~3 Year | |
| 13 | Warranty for Main Engine | 1 Year | |
| Functional Characteristics | 1 | Large flow diesel purification filter | |
| 2 | Polymer 3D mesh structure membrane filter element | ||
| 3 | High precision two-level filtration | ||
| 4 | High interception rate | ||
| 5 | Oil-water separation | ||
| 6 | Potable trolley structure | ||
| 7 | Providing rapid fuel filtration service on site | ||
| 8 | Circulating filtration for oil storage tank | ||
| 9 | Made of high quality thick steel plate, anti-corrosion treatment | ||
| 10 | Minimum mechanical flow resistance | ||
| 11 | Low pressure difference | ||
| 12 | Motor gear pump group | ||
| 13 | Pumping the oil stored in tank into systematic oil tank | ||
| 14 | Purifying the oil under use | ||
| 15 | Design life is more than 20 years (except for filter element) | ||
| Principle | Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated. | ||
| Application | Factories, mines, mechanical processing, engineering machinery, wind generating electricity and other industries in Asia, South America, Africa and Middle East. | ||
| High precision | the precision can reach 2 μm ,the stadard precision of this machine is 5~10 μm | ||
Application in mechanical processing and generating units
2014 Bauma China
Company information
Shenyang Jingyuan Membrane Co.,Ltd. is a professional and innovative membrane filter manufacturer,specialized in clean diesel filter technologh,special membrane production technology,supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high proformance military filtration device. we are particularly skilled in research and application of membrane filtration materials, strict product quality control. we uphold the proprietary technology and creative and offer you qualified products,competitive price and professional services. we sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit. Philosophy:Focus on research and development,continously innovate product,control quality in strict,base on equality and mutual benefit.
Cerificates:
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Packaging & Transportation
1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.
2>Appointed shipping company could be used in shipment.
3>Whole process monitoring insures the safety of goods unitl arrival.
FAQ
1.Q: Where is your factory located?
A:Our factory is located in Tieling City, Liaoning Province, China.
2.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2012.
3.Q: What is your minimum quantity, can you send me sample?
A: Our minimum ordered quantity is 1 set. I am very sorry that we can't offer you a sample. because our goods are machine.
4.Q:What are your generally modes of transportation ?
A:In general by air and sea.
JIng Yuan products list:
Large Capacity High Precision Diesel Refined Machine:JY-DF Series
Small Volume Diesel Purification Strainer:JY-219 Series, JY-T Series
Portable Industrial Oil Filtration Trolley:JY-E Series, JY-M Series
Diesel Demulsification Filtration System:JY-DFF Series
Sea Oil Water Removal System:JY-DFS Series
High Viscosity Hydraulic Oil/Gear Oil/Engine Oil Purification Refined Machine:JY-G Series
Our services---Term of Warranty:
We have our own factories and our own international sales team, we could satisfy you with our high quality products ,fast delivery and most important ,competitive price. We adhere to the philosophy of "Quality is the life,the credibility of the first,customer first".
1. One year with spare parts and service.
2. Engineers available to service machinery for overseas.
